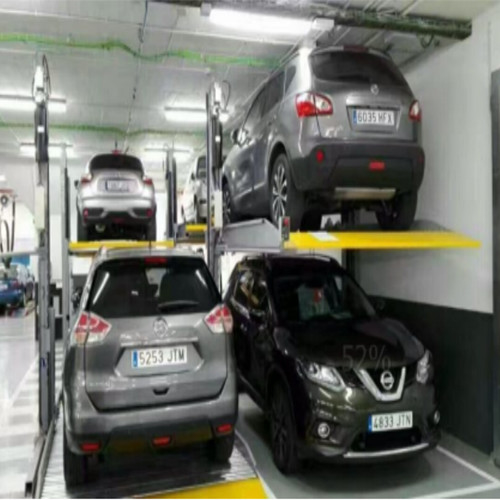

TP227 Hydraulic Cylinder Powered 2 Post Parking Lift For Maximum Stability

TP227 Hydraulic Cylinder Powered 2 Post Parking Lift For Maximum Stability

Brand Name: Iter
Model Number: TP227
MOQ: 1set
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000sets/month
Detail Information
Place of Origin:
Guangdong
Certification:
CE
Lifting Capacity:
2700kg
Release System:
Electrical Or Manual
Voltage:
220V/380V/as Your Request
Color:
Yellow/blue/red/green
Terms:
EXW/FOB/CIF
Volume:
3.5cbm
Packaging Details:
export standard, steel frame and carton
Supply Ability:
1000sets/month
Highlight:

Hydraulic 2 Post Parking Lift

,

Hydraulic Cylinder 2 Post Lift

,

Hydraulic Cylinder Parking Lift

Product Description
TP227 Hydraulic Cylinder Powered 2 Post Parking Lift For Maximum Stability
Product Specifications
Attribute Value
Lifting Capacity 2700kg
Release System Electrical or manual
Voltage 220V/380V/as your request
Color Yellow/blue/red/green
Terms EXW/FOB/CIF
Volume 3.5cbm
Key Features
  • Advanced hydraulic system provides controlled lifting and easy access, optimizing space utilization in garages and parking facilities
  • Intuitive controls require no specialized training, offering a practical solution for various installation locations
  • Supports shared post configurations for linked setups, reducing costs while maximizing space efficiency
  • Six dynamic unlocking positions with height adjustment from 1600mm to 2100mm for safe vehicle lifting and maintenance
  • Infrared photoelectric detection system enhances safety by identifying obstacles in operational space
  • Two-stage inverted hydraulic cylinder with Italian sealing rings prevents oil leakage for reliable long-term operation
Technical Data
Lifting Capacity 5940Lbs/2700kg
Lifting Height 2100mm
Lifting Time 2m/min
Min Height 5"/125mm
Column Height 3500mm
Platform Size 4173*2100mm
Motor Voltage 220V/380V
Frequency 50Hz or 60Hz
Phase 1Ph/3Ph
Net Weight 2310lbs/1050kg
Product Details
TP227 Hydraulic Cylinder Powered 2 Post Parking Lift For Maximum Stability 0
Cylinder Lifting Mechanism
TP227 Hydraulic Cylinder Powered 2 Post Parking Lift For Maximum Stability 1
Chains Drive System
TP227 Hydraulic Cylinder Powered 2 Post Parking Lift For Maximum Stability 2
Chain Drive Detail
TP227 Hydraulic Cylinder Powered 2 Post Parking Lift For Maximum Stability 3
Control Box
TP227 Hydraulic Cylinder Powered 2 Post Parking Lift For Maximum Stability 4
