High Precision Wheel Alignment Scissor Lift T400D 4000kg Capacity for Workshops

High Precision Wheel Alignment Scissor Lift T400D 4000kg Capacity for Workshops

Brand Name: Iter
Model Number: T400D
MOQ: 1 set
Payment Terms: L/C,T/T,Western Union
Supply Ability: 5000sets/month
Detail Information
Place of Origin:
Guangdong
Certification:
CE
Color:
Red/blue/yellow/grey
Voltage:
380V/220V As Your Request
Volume:
3cbm
Lifting Capacity:
8800bls /4000kg
Warranty:
1 Year
Brand:
Iter/OEM
Packaging Details:
steel frame and carton
Supply Ability:
5000sets/month
Highlight:

4000kg Wheel Alignment Scissor Lift

,

Wheel Alignment Lift 4000kg

,

Workshops Wheel Alignment Scissor Lift

Product Description
High Precision Wheel Alignment Scissor Lift T400D - 4000kg Capacity
Key Features
  • Seamless floor integration design saves valuable workshop space
  • Ideal solution for wheel alignment, chassis inspection, and vehicle repairs
  • Customizable turntable settings accommodate various vehicle models
  • Central lift extends up to 500mm for servicing longer vehicles
  • Aluminum housing regulates motor temperature for optimal performance
  • Automatic locking mechanism ensures safe lifting operations
  • Air-powered release system minimizes operational noise in the workshop
Product Specifications
Specification Value
Lifting Capacity 8800Lbs/4000kg
Secondary Lifting Height 18.5"/470mm
Lifting Height 78.35"/1990mm
Lifting Time (Jack) 20 seconds
Lifting Time (Large Scissor) 30 seconds
Minimum Height 13"/330mm
Air Source Pressure 5-6kg/cm²
Platform Width 24"/620mm
Width Between Platforms 33.5"/850mm
Overall Length 177.17"/4500mm
Motor Voltage 220V/380V
Frequency 50Hz or 60Hz
Phase 1Ph/3Ph
Net Weight 4091Lbs/1856kg
Product Attributes
Color Options Red/Blue/Yellow/Grey
Voltage 380V/220V (customizable)
Volume 3cbm
Warranty 1 Year
Brand Iter/OEM
Product Images

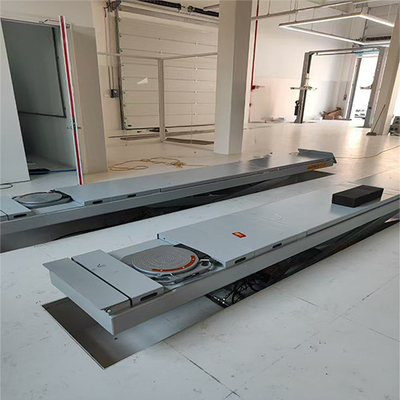

High Precision Wheel Alignment Scissor Lift T400D 4000kg Capacity for Workshops 0
Safety Lock System
High Precision Wheel Alignment Scissor Lift T400D 4000kg Capacity for Workshops 1
Secondary Jacks
High Precision Wheel Alignment Scissor Lift T400D 4000kg Capacity for Workshops 2
Turntable Cover Options
High Precision Wheel Alignment Scissor Lift T400D 4000kg Capacity for Workshops 3
Control Box
High Precision Wheel Alignment Scissor Lift T400D 4000kg Capacity for Workshops 4
Aluminum Pump Station
High Precision Wheel Alignment Scissor Lift T400D 4000kg Capacity for Workshops 5
Circuit Board
