T400A Precision Auto Alignment Lift 380V/220V With Low Profile Design

T400A Precision Auto Alignment Lift 380V/220V With Low Profile Design

Brand Name: Iter
Model Number: T400A
MOQ: 1set
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000sets/month
Detail Information
Place of Origin:
Guangdong
Certification:
CE
Color:
Red/blue/yellow/grey
Voltage:
380V/220V/as Your Request
Volume:
3cbm/set
Package:
Steel Frame And Carton
Warranty:
1 Year
Lifting Capacity:
4000kg
Packaging Details:
steel frame and carton
Supply Ability:
1000sets/month
Highlight:

Low Profile Auto Alignment Lift

,

T400A Auto Alignment Lift

,

Auto Alignment Lift 380V

Product Description
T400A Precision Auto Alignment Lift 380V/220V With Low Profile Design
Attribute Value
Color red/blue/yellow/grey
Voltage 380V/220V/as your request
Volume 3cbm/set
Package steel frame and carton
Warranty 1 year
Lifting capacity 4000kg
Precision Vehicle Alignment Lift with Low Profile Design
  1. Ultra-thin form factor allows for easy on-ground placement, providing a smooth lifting solution without raised platforms - ideal for professional auto shops and home garages.
  2. Perfect for alignment services, suspension tuning, and underbody assessments in professional auto repair facilities.
  3. Customizable turntable securely holds and aligns vehicles of different sizes for improved efficiency and accuracy.
  4. Japanese and American oil seals in the hydraulic cylinder prevent leaks, reduce maintenance, and ensure smooth operation under heavy-duty use.
  5. 24V low-tension power supply ensures safe operation while reducing energy consumption.
  6. Pneumatic unlock function enhances operational smoothness while reducing noise for a quieter workspace.
Technical Specifications
Lifting Capacity 8800Lbs/4000kg
Lifting Height 65.7"/1670mm
Secondary Lifting Height 17"/430mm
Min Height 8.27"/210mm
Overall length 165"/4500mm
Platform Width 26.36"/670mm
Width Between Two Platforms 32.28"/820mm
Capacity of Motor 3kw
Lifting time for large scissor 30seconds
Lifting time for jack 20seconds
Air source Pressure 5-6kg/cm²
Motor Voltage 220V/380V
Frequency 50Hz/60Hz
Phase 1ph/3ph
Net weight 4410Lbs/2000kg
Product Images

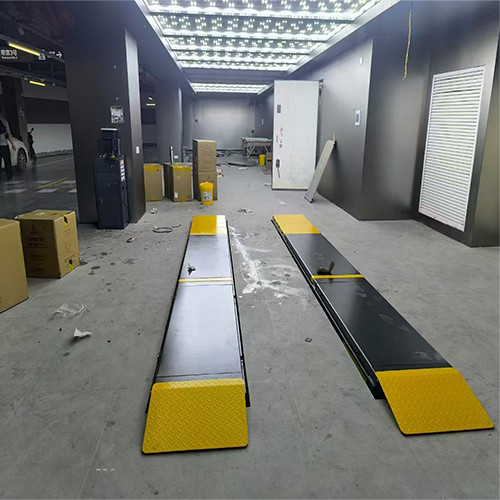

T400A Precision Auto Alignment Lift 380V/220V With Low Profile Design 0
T400A Precision Auto Alignment Lift 380V/220V With Low Profile Design 1
T400A Precision Auto Alignment Lift 380V/220V With Low Profile Design 2
Control box
T400A Precision Auto Alignment Lift 380V/220V With Low Profile Design 3
Circuit board
T400A Precision Auto Alignment Lift 380V/220V With Low Profile Design 4
Aluminum pump station
T400A Precision Auto Alignment Lift 380V/220V With Low Profile Design 5
Safety lock
