T400A Durable Alignment Scissor Lift 4000kg With Smooth Lifting

T400A Durable Alignment Scissor Lift 4000kg With Smooth Lifting

Brand Name: Iter
Model Number: T400A
MOQ: 1set
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000sets/month
Detail Information
Place of Origin:
Guangdong
Certification:
CE
Color:
Red/blue/yellow/grey
Voltage:
380V/220V/as Your Request
Volume:
3cbm/set
Package:
Steel Frame And Carton
Warranty:
1 Year
Lifting Capacity:
4000kg
Packaging Details:
steel frame and carton
Supply Ability:
1000sets/month
Highlight:

Smooth Lifting Alignment Scissor Lift

,

T400A Alignment Scissor Lift

,

4000kg Alignment Scissor Lift

Product Description
T400A Durable Alignment Scissor Lift 4000kg With Smooth Lifting
Product Specifications
Color red/blue/yellow/grey
Voltage 380V/220V/as your request
Volume 3cbm/set
Package steel frame and carton
Warranty 1 year
Lifting Capacity 4000kg
Product Description

Durable Scissor Lift with Smooth Lifting for Alignment Services

Flush-mounted, in-ground installation reduces accident risks, improves accessibility, and allows vehicles to drive over without obstructions.
Advanced features enable precise chassis diagnostics, wheel alignment, and vehicle maintenance tasks.
Flexible turntable adjustment accommodates diverse vehicle fleets, reducing setup time and boosting productivity.
Japanese and American oil seals in hydraulic cylinder prevent leaks, reduce maintenance, and ensure smooth operation under heavy use.
24V low-tension power supply ensures safe, stable operation while reducing energy consumption.
Central jack extends to 500mm height, accommodating larger vehicles requiring additional lifting range.
Aluminum motor housing provides excellent heat conduction, preventing overheating during continuous operation.
Automatic safety lock engages when lift is positioned, preventing unintended lowering and enhancing operator safety.

Versatile Scissor Lift for SUVs, Sedans & Trucks

Technical Data
Lifting Capacity 8800Lbs/4000kg
Lifting Height 65.7"/1670mm
Secondary Lifting Height 17"/430mm
Min Height 8.27"/210mm
Overall Length 165"/4500mm
Platform Width 26.36"/670mm
Width Between Two Platforms 32.28"/820mm
Capacity of Motor 3kw
Lifting Time for Large Scissor 30seconds
Lifting Time for Jack 20seconds
Air Source Pressure 5-6kg/cm²
Motor Voltage 220V/380V
Frequency 50Hz/60Hz
Phase 1ph/3ph
Net Weight 4410Lbs/2000kg
Product Images
T400A Durable Alignment Scissor Lift 4000kg With Smooth Lifting 0

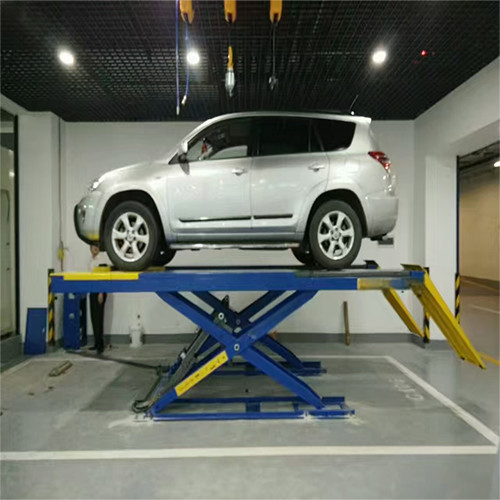

T400A Scissor Lift Overview
T400A Durable Alignment Scissor Lift 4000kg With Smooth Lifting 1
Lift Mechanism Detail
T400A Durable Alignment Scissor Lift 4000kg With Smooth Lifting 2
Control Box
T400A Durable Alignment Scissor Lift 4000kg With Smooth Lifting 3
Circuit Board
