TP232 2 Post Parking Lift CE Certified With Six Position Locking System

Name: TP232 2 Post Parking Lift CE Certified With Six Position Locking System
Brand: Guangzhou Eitel Technology Co., Ltd.
SKU: TP232
Price: 1,250.00 USD
Availability: InStock

Brand Name:	Iter
Model Number:	TP232
MOQ:	1set
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

Lifting Capacity:

3200kg

Release System:

Electrical Or Manual

Voltage:

220V/380V/as Your Request

Color:

Yellow/blue/red/green

Terms:

EXW/FOB/CIF

Volume:

3.5cbm

Packaging Details:

export standard, steel frame and carton

Supply Ability:

1000sets/month

Highlight:

Six Position Locking Parking Lift

CE 2 Post Parking Lift

CE 2 Post Lift

Product Description

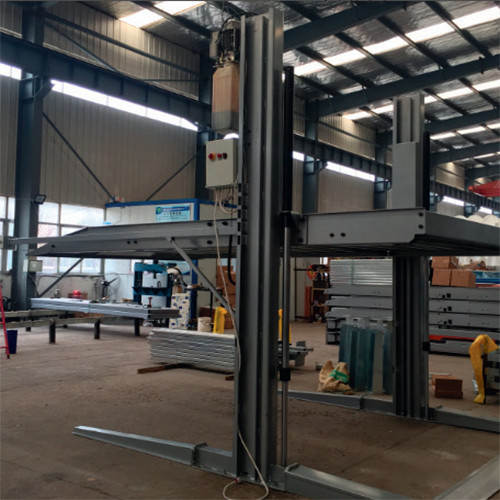

TP232 2 Post Parking Lift CE Certified With Six Position Locking System

Product Specifications

Attribute	Value
Lifting Capacity	3200kg
Release System	Electrical or manual
Voltage	220V/380V/as your request
Color	Yellow/blue/red/green
Terms	EXW/FOB/CIF
Volume	3.5cbm

TP232 CE Certified 2 Post Parking Lift With Advanced Safety Features

Designed for optimal SUV parking, this system enables vehicles to be stacked vertically, allowing better use of available space while ensuring that both the lifted and lower vehicles remain stable, undamaged, and easily accessible whenever needed.
Featuring a practical and adaptable design, this lift can be used in different environments, from private garages to commercial buildings, with an installation process that is simple and does not require specialized expertise, making it a user-friendly and efficient solution.
The innovative design of this lift allows it to be combined into two or three linked units by sharing posts, significantly reducing installation and material costs while allowing garages to increase their parking capacity without requiring additional floor space.
The advanced six-position locking system allows for dynamic unlocking at various heights, from 1600mm to 2100mm, ensuring that vehicles can be safely secured at different levels, making it an ideal parking solution for both residential and commercial applications.
A sophisticated infrared photoelectric detection system ensures this lift operates safely by detecting any obstructions in real time, automatically stopping its motion to prevent vehicle damage, personal injury, or mechanical malfunction, making it a secure and reliable option.
A highly reliable automatic locking system is integrated into this lift, ensuring that once a vehicle is raised, it remains securely positioned, reducing risks and enhancing safety for users in garages, parking lots, and maintenance facilities.
The lift's infrared photoelectric detection system enhances safety by constantly scanning for obstacles, pausing operation when necessary to prevent collisions, ensuring that vehicles and users remain protected from potential accidents during parking, lifting, or retrieval.
By utilizing a DC24V control voltage, this parking lift ensures safety for operators, reducing the risk of electrical hazards while maintaining a stable operation, providing users with a highly reliable and secure vehicle lifting experience.

Technical Specifications

Specification	Value
Lifting Capacity	6400Lbs/3200kg
Lifting Height	2100mm
Lifting Time	60 seconds
Min Height	5"/125mm
Column height	3500mm
Platform size	4173*2100mm
Motor Voltage	220V/380V
Frequency	50Hz or 60Hz
Phase	1Ph/3Ph
Net Weight	2200bs/1100kg
