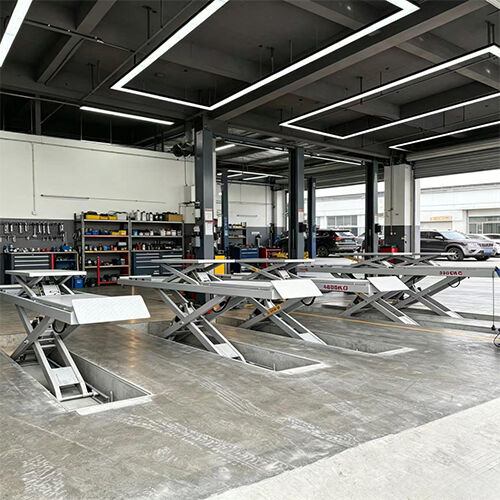

5T Garage Hydraulic Lift 5 Meter Lngth Platform With Secondary Jack

5T Garage Hydraulic Lift 5 Meter Lngth Platform With Secondary Jack

Product Specifications

Attribute	Value
Color	red/blue/yellow/grey
Voltage	380V/220V as your request
Volume	3cbm
Lifting Capacity	112500lbs / 5000kg
Warranty	1 year
Brand	Iter/OEM

Product Features

• The in-ground design allows for a more streamlined and professional workshop appearance by eliminating bulky above-ground structures, reducing trip hazards, and offering a user-friendly experience for mechanics performing alignment, lifting, or other vehicle maintenance tasks.
• Designed for optimal functionality, this lift supports precise alignment, thorough chassis checks, and various maintenance tasks, allowing technicians to work with accuracy and confidence on a range of vehicles.
• The turntable's variable positioning capability allows for easy modifications, making it possible to work on an extensive range of vehicles with different wheelbase and chassis configurations.
• This system includes an extendable central jack, reaching 500mm, which provides additional support for vehicles that require extra lift height.
• The use of an aluminum motor provides excellent thermal management, helping to regulate heat levels effectively and preventing overheating, which ultimately contributes to a more durable and efficient performance over prolonged periods of operation.
• The integrated self-locking safety mechanism ensures that the lift remains securely in place while elevated, reducing the risk of sudden drops and enhancing operator confidence in the system's reliability.
• Equipped with a pneumatic release mechanism, this system helps to decrease sound emissions, ensuring a more pleasant and noise-controlled environment for both technicians and customers.
• Air-powered release minimizes operational noise, which makes the workplace less exhausting.

Technical Specifications

Specification	Value
Lifting Capacity	112500Lbs/5000kg
Secondary Lifting Height	18.5"/470mm
Lifting Height	78.35"/1990mm
Lifting Time for Jack	20 seconds
Lifting Time for Large Scissor	30 seconds
Min Height	14"/350mm
Air Source Pressure	5-6kg/cm²
Platform Width	24"/620mm
Width between two platforms	33.5"/850mm
Overall Length	204"/5000mm
Motor Voltage	220V/380V
Frequency	50Hz or 60Hz
Phase	1Ph/3Ph
Net Weight	4091Lbs/1856kg

Product Images

Safety lock system and secondary jacks

Different sizes for the turntable cover and control box

Aluminum pump station for easy cooling and circuit board

FAQ

Q: How do you ganrantee the production quality?
A: We have an independent QC team. Our QC teams do sample inspection, part inspection during production and 100% final inspection before the shipment.

Q: Have you exported to our country?
A: From now on, we have did business with foreign friends from 128 countries, such as USA, Canada, UK, Italy, South Africa......

Q: May I know the Lead time?
A:The lead time of our machine is 7-10 days. When you order more, we need to check the production schedule.

Q: What is the regular color? May I order a special color I like?
A: The regular color is Blue, Orange, Grey, Red. Also we can do customize one for you.

Q: Can you supply OEM service?
A: Yes, we can, some customers prefer that use their Logo, their color. And we are glad to help them open their market.

Q: What is the warranty time?
A: Warranty time is 12 months. Parts have free replacement when damaged during this time.

Q: What is your payment terms?
A: We accept T/T, Western Union, L/C etc.

Q: Can you provide the whole workshop automotive equipment?
A: Yes. we can. And we have help many customers to start their body shops, some from Canada, UAE, Germany,Tailand, etc.

Q: Can I have a visit to your company?
A: Sure, welcome to visit us. Our factories are located in Guangzhou city.
