TP227 2 Post Parking Lift 2m/min For High Density Car Storage

TP227 2 Post Parking Lift 2m/min For High Density Car Storage

Brand Name: Iter
Model Number: TP227
MOQ: 1set
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000sets/month
Detail Information
Place of Origin:
Guangdong
Certification:
CE
Lifting Capacity:
2700kg
Release System:
Electrical Or Manual
Voltage:
220V/380V/as Your Request
Color:
Yellow/blue/red/green
Terms:
EXW/FOB/CIF
Volume:
3.5cbm
Packaging Details:
export standard, steel frame and carton
Supply Ability:
1000sets/month
Highlight:

Car Parking Lift 2m/min

,

Car 2 Post Parking Lift

,

2 Post Car Storage Lift

Product Description

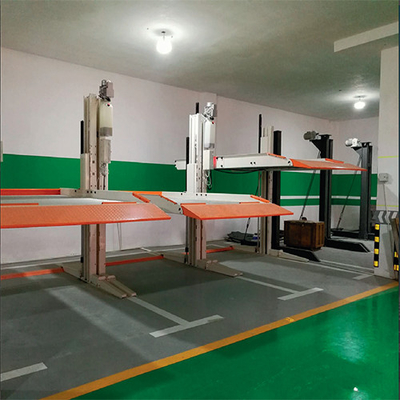

TP227 2 Post Parking Lift 2m/min For High Density Car Storage
Product Specifications
Attribute Value
Lifting Capacity 2700kg
Release System Electrical or manual
Voltage 220V/380V/as your request
Color Yellow/blue/red/green
Terms EXW/FOB/CIF
Volume 3.5cbm
Product Description
TP227 Cost-Effective 2 Post Parking Lift for High-Density Car Storage
  • Perfect for SUV owners, this lift system allows vertical parking without occupying extra floor space, enabling efficient vehicle organization for homeowners, mechanics, and businesses while ensuring safe, stable access.
  • Designed for various parking needs with broad usability, featuring a simple installation process and smooth operating system for effortless vehicle parking, retrieval, and maintenance.
  • Post-sharing capability allows for two or three interconnected platforms, eliminating unnecessary columns while maintaining stability for cost-effective, high-capacity storage in limited spaces.
  • Six-position dynamic unlocking system ensures reliable parking security with adjustable heights between 1600mm and 2100mm for maximum stability and flexibility.
  • Built-in infrared photoelectric detection system enhances safety by identifying obstacles in the operational space, preventing accidents and ensuring smooth movement.
  • Precision-engineered two-stage inverted hydraulic lifting system with Italian sealing rings ensures zero oil leakage, stable operation, and reduced maintenance needs.
  • Infrared photoelectric detection enhances operational safety by immediately halting the system upon obstacle detection, ideal for garages and high-traffic parking environments.
Technical Data
Lifting Capacity 5940Lbs/2700kg
Lifting Height 2100mm
Lifting Time 2m/min
Min Height 5"/125mm
Column Height 3500mm
Platform Size 4173*2100mm
Motor Voltage 220V/380V
Frequency 50Hz or 60Hz
Phase 1Ph/3Ph
Net Weight 2310lbs/1050kg
