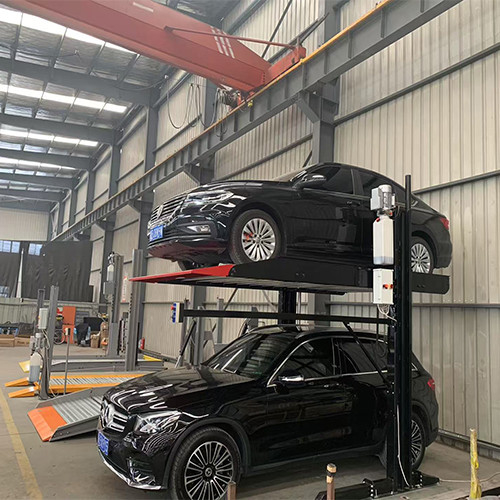

TP232 Double Level 2 Post Car Lift For Residential And Commercial

TP232 Double Level 2 Post Car Lift For Residential And Commercial

Brand Name: Iter
Model Number: TP232
MOQ: 1set
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000sets/month
Detail Information
Place of Origin:
Guangdong
Certification:
CE
Lifting Capacity:
3200kg
Release System:
Electrical Or Manual
Voltage:
220V/380V/as Your Request
Color:
Yellow/blue/red/green
Terms:
EXW/FOB/CIF
Volume:
3.5cbm
Packaging Details:
export standard, steel frame and carton
Supply Ability:
1000sets/month
Highlight:

Residential 2 Post Car Lift

,

Commercial 2 Post Car Lift

,

Double Level 2 Post Lift

Product Description
TP232 Double Level 2 Post Car Lift For Residential And Commercial
Product Specifications
Attribute Value
Lifting capacity 3200kg
Release system Electrical or manual
Voltage 220V/380V/as your request
Color Yellow/blue/red/green
Terms EXW/FOB/CIF
Volume 3.5cbm
Product Features
  • Optimized for SUVs and similar-sized automobiles with stable lifting system that prevents damage while efficiently utilizing vertical parking space
  • Quick installation requiring only basic tools and knowledge with streamlined operation for effortless vehicle lifting
  • Configurable into combined units using shared posts, allowing two or three lifts to be integrated into one structure
  • Built-in infrared photoelectric detection system ensures safety by scanning for obstructions
  • Six-point locking system enables dynamic unlocking at various heights (1600mm to 2100mm)
  • Automatic locking device guarantees safety by securing vehicles in position
  • Two-stage inverted hydraulic system with premium Italian sealing rings for leak-proof operation
  • DC24V control voltage system ensures operator safety with minimal electrical risks
Technical Data
Lifting Capacity 6400Lbs/3200kg
Lifting Height 2100mm
Lifting Time 60 seconds
Min Height 5"/125mm
Column height 3500mm
Platform size 4173*2100mm
Motor Voltage 220V/380V
Frequency 50Hz or 60Hz
Phase 1Ph/3Ph
Net Weight 2200bs/1100kg
Product Details
TP232 Double Level 2 Post Car Lift For Residential And Commercial 0
TP232 Double Level 2 Post Car Lift For Residential And Commercial 1
TP232 Double Level 2 Post Car Lift For Residential And Commercial 2
Safety lock
TP232 Double Level 2 Post Car Lift For Residential And Commercial 3
Limit switch
TP232 Double Level 2 Post Car Lift For Residential And Commercial 4
Basement design
