TP232 High Strength 2 Post Parking Lift For SUVs And Sedans

TP232 High Strength 2 Post Parking Lift For SUVs And Sedans

Brand Name: Iter
Model Number: TP232
MOQ: 1set
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000sets/month
Detail Information
Place of Origin:
Guangdong
Certification:
CE
Lifting Capacity:
3200kg
Release System:
Electrical Or Manual
Voltage:
220V/380V/as Your Request
Color:
Yellow/blue/red/green
Terms:
EXW/FOB/CIF
Volume:
3.5cbm
Packaging Details:
export standard, steel frame and carton
Supply Ability:
1000sets/month
Highlight:

TP232 2 Post Parking Lift

,

Parking 2 Post Car Lift

,

SUVs 2 Post Parking Lift

Product Description

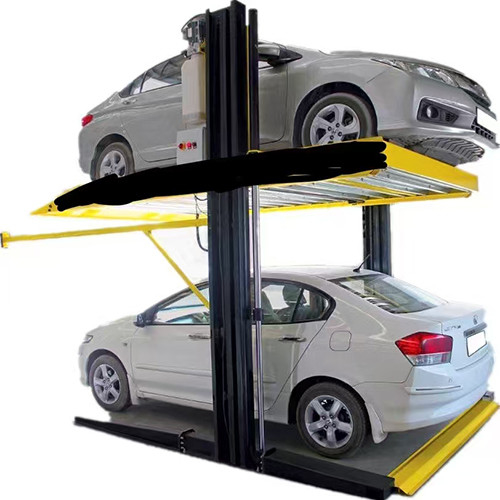

TP232 High Strength 2 Post Parking Lift For SUVs And Sedans
Product Specifications
Lifting Capacity: 3200kg
Release System: Electrical or manual
Voltage: 220V/380V/as your request
Color: yellow/blue/red/green
Terms: EXW/FOB/CIF
Volume: 3.5cbm
Product Features
  1. Designed to safely elevate and store SUVs, maximizing space in home garages and commercial parking areas
  2. Versatile installation for residential garages, commercial workshops, and public parking lots with user-friendly operation
  3. Shared support posts allow multiple unit connections, minimizing material usage while maximizing parking capacity
  4. Six-point dynamic unlocking system with adjustable locking heights (1600mm to 2100mm) for secure multi-level parking
  5. Heavy-duty motor housing with optional aluminum shell for enhanced protection and heat dissipation
  6. Adjustable voltage options for global workshop compatibility
Technical Specifications
Specification Value
Lifting Capacity 6400Lbs/3200kg
Lifting Height 2100mm
Lifting Time 60 seconds
Min Height 5"/125mm
Column height 3500mm
Platform size 4173*2100mm
Motor Voltage 220V/380V
Frequency 50Hz or 60Hz
Phase 1Ph/3Ph
Net Weight 2200bs/1100kg
Product Images
TP232 High Strength 2 Post Parking Lift For SUVs And Sedans 0 TP232 High Strength 2 Post Parking Lift For SUVs And Sedans 1 TP232 High Strength 2 Post Parking Lift For SUVs And Sedans 2 TP232 High Strength 2 Post Parking Lift For SUVs And Sedans 3 TP232 High Strength 2 Post Parking Lift For SUVs And Sedans 4
