T240M-1 High Performance Automotive Lifts 220V/380V For Fast Service Operations

T240M-1 High Performance Automotive Lifts 220V/380V For Fast Service Operations

Brand Name: Iter
Model Number: T240M-1
MOQ: 1set
Payment Terms: T/T,Western Union
Supply Ability: 1000 sets/month
Detail Information
Place of Origin:
China
Certification:
CE
Color:
Red/blue/yellow/grey
Voltage:
220V/380V/As Your Request
Volume:
1.5 Cbm
Release System:
Single Point Manual Release
Payment Terms:
EXW/FOB/CIF
Lifting Capacity:
8800lbs
Packaging Details:
steel frame with carton
Supply Ability:
1000 sets/month
Highlight:

380V Automotive Lifts

,

220V Automotive Lifts

,

T240M-1 Automotive Lifts

Product Description
T240M-1 High Performance Automotive Lifts 220V/380V For Fast Service Operations
Product Specifications
Color Options Red/Blue/Yellow/Grey
Voltage 220V/380V/As your request
Volume 1.5 cbm
Release System Single point manual release
Payment Terms EXW/FOB/CIF
Lifting Capacity 8800lbs
Product Features
  • Clear-floor configuration provides a clutter-free workspace for enhanced service efficiency
  • Intuitive single-point manual release for easy lock engagement/disengagement
  • Top-grade Japanese and U.S. oil seals ensure flawless hydraulic system operation
  • Non-symmetrical arm layout maximizes working space for vehicles up to 2850mm in width
  • Durable motor with economical cast-iron cover (aluminum upgrade available)
  • Optional advanced imported pump for improved hydraulic system efficiency and reliability
  • Multi-voltage power supply option for wide electrical configuration compatibility
Technical Specifications
Lifting Capacity 8800lbs/4000kg
Lifting Height 71"/1800mm
Lifting Time 50 seconds
Overall Height 112"/2856mm
Overall Width 138"/3500mm
Width between Columns 112"/2860mm
Motor Voltage 220V/380V
Frequency 50Hz/60Hz
Phase 1ph/3ph
Net Weight 1439lbs/653kg
Product Details
T240M-1 High Performance Automotive Lifts 220V/380V For Fast Service Operations 0

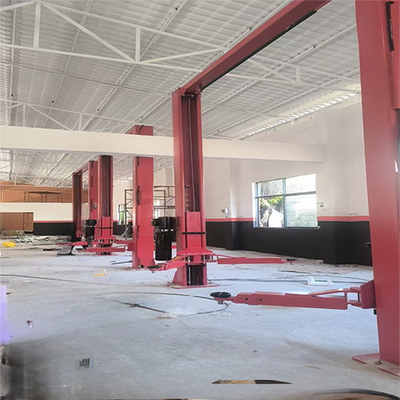

T240M-1 Automotive Lift - Full View
T240M-1 High Performance Automotive Lifts 220V/380V For Fast Service Operations 1
Structural Design Detail
T240M-1 High Performance Automotive Lifts 220V/380V For Fast Service Operations 2
Single Point Release Mechanism
T240M-1 High Performance Automotive Lifts 220V/380V For Fast Service Operations 3
3+2 Arm Design Configuration
T240M-1 High Performance Automotive Lifts 220V/380V For Fast Service Operations 4
Optional Rubber Support Pads
T240M-1 High Performance Automotive Lifts 220V/380V For Fast Service Operations 5
Robust Carriage Design
