Car Maintenance Super Thin Small Scissors Lift With 4 Cylinders

Car Maintenance Super Thin Small Scissors Lift With 4 Cylinders

Brand Name: Iter
Model Number: T300C
MOQ: 1 set
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000 sets/month
Detail Information
Place of Origin:
GUANGDONG
Certification:
CE
COLOR:
Red/blue/grey/yellow
Voltage:
380V/220V/as Your Request
Warranty:
1 Year
Volume:
1 Cbm
Lifting Capacity:
3500kg
Install Way:
On-ground
Packaging Details:
export standard, steel frame and carton
Supply Ability:
1000 sets/month
Highlight:

Super Thin Small Scissors Lift

,

4 Cylinders Small Scissors Lift

,

Car Maintenance Small Scissors Lift

Product Description
Car Maintenance Super Thin Small Scissors Lift With 4 Cylinders
Product Specifications
COLOR:
red/blue/grey/yellow
VOLTAGE:
380V/220V/as your request
WARRANTY:
1 year
VOLUME:
1 cbm
LIFTING CAPACITY:
3500kg
INSTALL WAY:
on-ground
Product Description

Super-thin small scissors lift with 4 cylinders designed specifically for efficient car maintenance operations.

Key Features
  • On-ground design with adjustable ramps for versatile positioning
  • Four-cylinder interlocking structure ensures platform stability
  • Pneumatic double self-locking system maintains level lifting
  • Aluminum motor construction prevents overheating
  • Pneumatic release system minimizes operational noise
Technical Specifications
Specification Value
Lifting Capacity 7700Lbs/3500kg
Lifting Height 70"/1790mm
Min Height 4.3"/110mm
Overall Length 59.3"/1505mm
Platform Width 25"/634mm
Width between platforms 27.5"/700mm
Lifting Time 20 seconds
Motor Voltage 220V/380V
Frequency 50Hz or 60Hz
Phase 1Ph/3Ph
Net Weight 1848Lbs/840kg
Product Details
Car Maintenance Super Thin Small Scissors Lift With 4 Cylinders 0

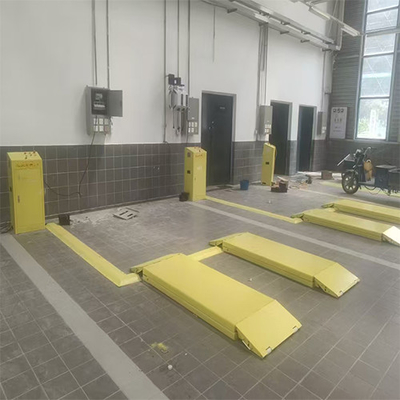

Car maintenance scissors lift
Car Maintenance Super Thin Small Scissors Lift With 4 Cylinders 1

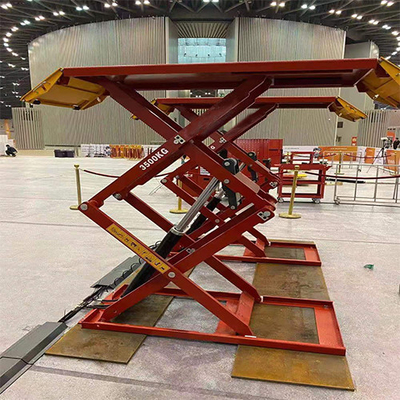

Lift mechanism detail
Car Maintenance Super Thin Small Scissors Lift With 4 Cylinders 2
Control box
Car Maintenance Super Thin Small Scissors Lift With 4 Cylinders 3
Circuit board
Car Maintenance Super Thin Small Scissors Lift With 4 Cylinders 4
Chassis and safety lock
