T240M-1 Heavy Duty 2-post Auto Lift With Safety Locks And Angled Lifting Arms

T240M-1 Heavy Duty 2-post Auto Lift With Safety Locks And Angled Lifting Arms

Brand Name: Iter
Model Number: T240M-2
MOQ: 1set
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000sets/month
Detail Information
Place of Origin:
Guangdong
Certification:
CE
Lifting Capacity:
4000kg
Release System:
Manual
Voltage:
220V/380V/as Your Request
Color:
Yellow/blue/red/green
Terms:
EXW/FOB/CIF
Volume:
1.5cbm
Packaging Details:
export standard, steel frame and carton
Supply Ability:
1000sets/month
Highlight:

heavy duty auto lift

,

2-post auto lift

Product Description
T240M-1 Heavy Duty 2-post Auto Lift With Safety Locks And Angled Lifting Arms
Product Specifications
Attribute Value
Lifting Capacity 4000kg
Release System Manual
Voltage 220V/380V/as your request
Color Yellow/Blue/Red/Green
Terms EXW/FOB/CIF
Volume 1.5cbm
Product Features
  • Barrier-free floor design provides seamless movement for technicians, enhancing service convenience
  • One-touch release mechanism ensures smooth and hassle-free lifting and lowering
  • Angled lifting arms offer better accessibility for larger cars and SUVs
  • Top-grade oil seals from Japan and the U.S. ensure long-lasting durability and efficiency
  • Reinforced rubber guards minimize impact damage, extending the lift's lifespan
  • Heavy-duty iron tank ensures durability with optional high-performance imported pump
  • Multi-power compatibility allows for customized voltage selection
Technical Data
Specification Value
Lifting Capacity 9000lbs/4000kg
Lifting Height 71"/1800mm
Lifting Time 50 seconds
Overall Height 112"/2856mm
Overall Width 138"/3500mm
Width between Columns 109"/2760mm
Motor Voltage 220V/380V
Frequency 50Hz/60Hz
Phase 1ph/3ph
Net Weight 1439lbs/653kg

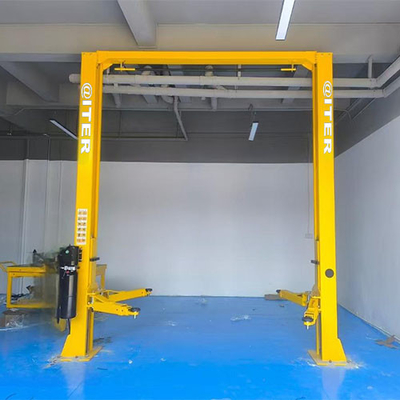

Product Images
T240M-1 Heavy Duty 2-post Auto Lift With Safety Locks And Angled Lifting Arms 0 T240M-1 Heavy Duty 2-post Auto Lift With Safety Locks And Angled Lifting Arms 1
T240M-1 Heavy Duty 2-post Auto Lift With Safety Locks And Angled Lifting Arms 2
Stranger arms 3+2 design
T240M-1 Heavy Duty 2-post Auto Lift With Safety Locks And Angled Lifting Arms 3
Durable steel oil tank
T240M-1 Heavy Duty 2-post Auto Lift With Safety Locks And Angled Lifting Arms 4
3*4 stronger chain
T240M-1 Heavy Duty 2-post Auto Lift With Safety Locks And Angled Lifting Arms 5
Safety lock for the arms
