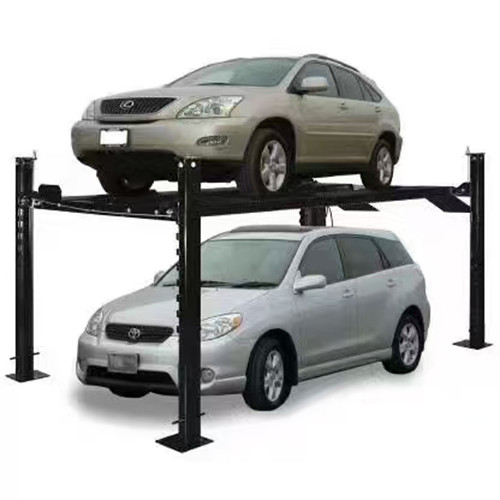

TP430 Hydraulic 4 Post Parking Lift For SUVs And Trucks

TP430 Hydraulic 4 Post Parking Lift For SUVs And Trucks

Brand Name: Iter
Model Number: TP430
MOQ: 1set
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000sets/month
Detail Information
Place of Origin:
Guangdong
Certification:
CE
Lifting Capacity:
3000kg
Release System:
Electrical Or Manual
Voltage:
220V/380V/as Your Request
Color:
Yellow/blue/red/green
Terms:
EXW/FOB/CIF
Volume:
3.5cbm
Packaging Details:
export standard, steel frame and carton
Supply Ability:
1000sets/month
Highlight:

Hydraulic 4 Post Parking Lift

,

SUVs 4 Post Parking Lift

,

Trucks 4 Post Parking Lift

Product Description
TP430 Hydraulic 4 Post Parking Lift For SUVs And Trucks
Key Specifications
Attribute Value
Lifting Capacity 3000kg
Release System Electrical or manual
Voltage 220V/380V/as your request
Color Yellow/blue/red/green
Terms EXW/FOB/CIF
Volume 3.5cbm
Product Features
  1. Hidden hydraulic and electrical system conceals power unit, cylinder, and electrical box for sleek design, reduced damage risk, and enhanced safety for vehicle storage and maintenance.
  2. Enhanced load-bearing strength ideal for SUVs and heavy vehicles, providing durable parking solutions for workshops, garages, and multi-level parking structures.
  3. Universal design with easy installation and operation for both personal and professional vehicle storage needs.
  4. Advanced hydraulic overload protection automatically detects excess weight to prevent system strain.
  5. Multiple protection systems prevent sudden drops and secure vehicles at different heights.
  6. Infrared detection system monitors lift movement to prevent obstructions, with automatic locking for stability.
  7. Self-locking mechanism prevents unexpected shifts for secure parking in all settings.
Technical Specifications
Lifting Capacity 6600Lbs/3000kg
Lifting Height 2000mm
Lifting Time 60 seconds
Min Height 5"/125mm
Column Height 2326mm
Platform Size 4900*2807mm
Motor Voltage 220V/380V
Frequency 50Hz or 60Hz
Phase 1Ph/3Ph
Net Weight 2200bs/1100kg
Product Details
TP430 Hydraulic 4 Post Parking Lift For SUVs And Trucks 0 TP430 Hydraulic 4 Post Parking Lift For SUVs And Trucks 1 TP430 Hydraulic 4 Post Parking Lift For SUVs And Trucks 2
