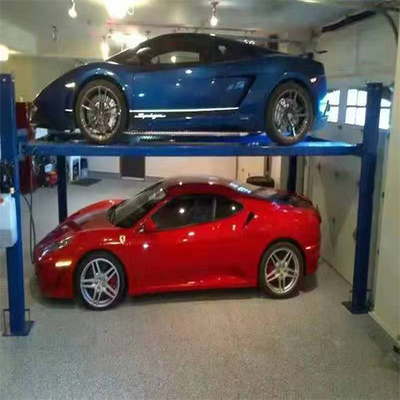

TP430 Hydraulic Cylinder 4 Post Parking Lift 3000kg Lifting Capacity For Home Garage

TP430 Hydraulic Cylinder 4 Post Parking Lift 3000kg Lifting Capacity For Home Garage

Brand Name: Iter
Model Number: TP430
MOQ: 1set
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000sets/month
Detail Information
Place of Origin:
Guangdong
Certification:
CE
Lifting Capacity:
3000kg
Release System:
Electrical Or Manual
Voltage:
220V/380V/as Your Request
Color:
Yellow/blue/red/green
Terms:
EXW/FOB/CIF
Volume:
3.5cbm
Packaging Details:
export standard, steel frame and carton
Supply Ability:
1000sets/month
Highlight:

Home 4 Post Parking Lift

,

Garage 4 Post Parking Lift

,

3000kg Garage Parking Lift

Product Description
TP430 Hydraulic Cylinder 4 Post Parking Lift - 3000kg Capacity for Home Garage
Product Specifications
Lifting Capacity 3000kg
Release System Electrical or manual
Voltage 220V/380V/as your request
Color Options Yellow/Blue/Red/Green
Terms EXW/FOB/CIF
Volume 3.5cbm
Premium 4-Post Parking Lift Features
  • Hidden hydraulic cylinder, power unit, and electrical box design enhances safety and workspace aesthetics
  • High weight capacity supports secure storage of SUVs, trucks, and larger vehicles
  • Ideal for residential garages, commercial parking lots, and automotive workshops
  • Hydraulic overload protection prevents system damage and extends lift lifespan
  • Multiple safety mechanisms including automatic locking and emergency stop functions
  • Infrared photoelectric detection system ensures precise vehicle positioning
  • High-quality Italian sealing rings in hydraulic cylinder for leak-free operation
Technical Data
Specification Value
Lifting Capacity 6600Lbs/3000kg
Lifting Height 2000mm
Lifting Time 60 seconds
Min Height 5"/125mm
Column Height 2326mm
Platform Size 4900×2807mm
Motor Voltage 220V/380V
Frequency 50Hz or 60Hz
Phase 1Ph/3Ph
Net Weight 2200bs/1100kg
Product Details
TP430 Hydraulic Cylinder 4 Post Parking Lift 3000kg Lifting Capacity For Home Garage 0 TP430 Hydraulic Cylinder 4 Post Parking Lift 3000kg Lifting Capacity For Home Garage 1 TP430 Hydraulic Cylinder 4 Post Parking Lift 3000kg Lifting Capacity For Home Garage 2
