TP227 Adjustable Height 2 Post Parking Lift For Various Vehicles

TP227 Adjustable Height 2 Post Parking Lift For Various Vehicles

Brand Name: Iter
Model Number: TP227
MOQ: 1set
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000sets/month
Detail Information
Place of Origin:
Guangdong
Certification:
CE
Lifting Capacity:
2700kg
Release System:
Electrical Or Manual
Voltage:
220V/380V/as Your Request
Color:
Yellow/blue/red/green
Terms:
EXW/FOB/CIF
Volume:
3.5cbm
Packaging Details:
export standard, steel frame and carton
Supply Ability:
1000sets/month
Highlight:

Adjustable 2 Post Parking Lift

,

Adjustable Height 2 Post Lift

,

Vehicles 2 Post Parking Lift

Product Description
TP227 Adjustable Height 2 Post Parking Lift For Various Vehicles
Product Specifications
Attribute Value
Lifting capacity 2700kg
Release system Electrical or manual
Voltage 220V/380V/as your request
Color yellow/blue/red/green
Terms EXW/FOB/CIF
Volume 3.5cbm
Product Features

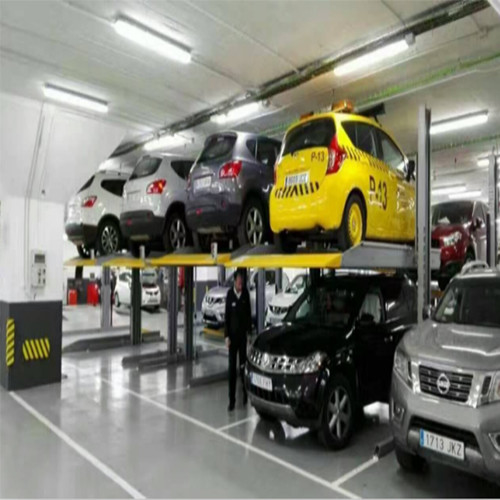

  • The system is capable of lifting SUVs and similar large vehicles, making it an essential addition to garages, service centers, and parking areas where maximizing storage capacity and ensuring secure parking are key considerations.
  • This two-post lift is widely applicable for different vehicle parking needs, offering an installation process that requires minimal tools and effort while providing a smooth operational experience, making it a valuable addition to any space-conscious garage or parking area.
  • Equipped with a six-point dynamic locking system, this lift allows height adjustments from 1600mm to 2100mm, providing a flexible and secure parking solution that accommodates different vehicle sizes while maintaining stability and efficiency in limited-space environments.
  • This parking system supports the integration of multiple lifts through shared posts, reducing the need for excess structural components while maintaining stability, ensuring that garages and businesses can expand their parking capacity without incurring excessive costs.
  • The advanced infrared photoelectric detection system installed in this lift enhances safety by continuously scanning for objects in its path, ensuring that operations cease automatically upon detection, preventing unwanted collisions, mechanical damage, and safety hazards.
  • Featuring an advanced two-stage inverted hydraulic cylinder system, this lift integrates Italian-imported sealing rings that prevent oil leakage, ensuring a stable and secure lifting process while maximizing reliability and longevity in high-demand parking applications.
Technical Data
Lifting Capacity 5940Lbs/2700kg
Lifting Height 2100mm
Lifting Time 2m/min
Min Height 5"/125mm
Column height 3500mm
Platform size 4173*2100mm
Motor Voltage 220V/380V
Frequency 50Hz or 60Hz
Phase 1Ph/3Ph
Net Weight 2310lbs/1050kg
Product Details
TP227 Adjustable Height 2 Post Parking Lift For Various Vehicles 0
Cylinder lifting mechanism
TP227 Adjustable Height 2 Post Parking Lift For Various Vehicles 1
Chains drive system
TP227 Adjustable Height 2 Post Parking Lift For Various Vehicles 2
Chain drive mechanism
TP227 Adjustable Height 2 Post Parking Lift For Various Vehicles 3
Control box
TP227 Adjustable Height 2 Post Parking Lift For Various Vehicles 4
Full assembly view
