Garage 2 Post Car Lifting Equipment Smart With DC24V Safety Control System

Garage 2 Post Car Lifting Equipment Smart With DC24V Safety Control System

Brand Name: Iter
Model Number: TP227
MOQ: 1set
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000sets/month
Detail Information
Place of Origin:
Guangdong
Certification:
CE
Lifting Capacity:
2700kg
Release System:
Electrical Or Manual
Voltage:
220V/380V/as Your Request
Color:
Yellow/blue/red/green
Terms:
EXW/FOB/CIF
Volume:
3.5cbm
Packaging Details:
export standard, steel frame and carton
Supply Ability:
1000sets/month
Highlight:

Smart 2 Post Lift

,

Car Lifting Equipment DC24V

,

Garage 2 Post Lift

Product Description

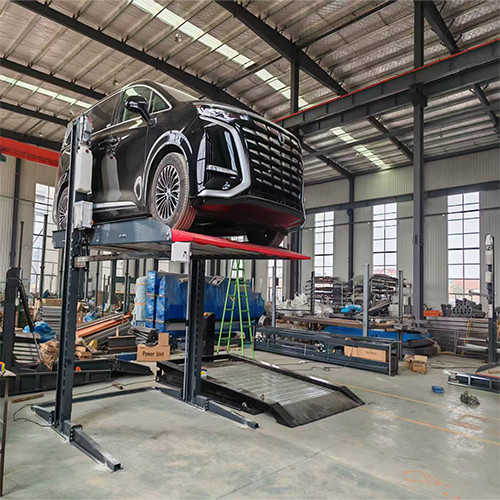

Garage 2 Post Car Lifting Equipment Smart With DC24V Safety Control System
Product Specifications
Lifting Capacity: 2700kg
Release System: Electrical or manual
Voltage: 220V/380V/as your request
Color: yellow/blue/red/green
Terms: EXW/FOB/CIF
Volume: 3.5cbm
TP227 Smart 2 Post Lift Features
  1. Supports both compact cars and SUVs with efficient vertical space utilization for double parking without compromising safety or accessibility.
  2. Streamlined installation process with user-friendly interface requiring minimal training for operation.
  3. Six-point dynamic locking system with adjustable height from 1600mm to 2100mm for versatile vehicle accommodation.
  4. Supports multiple lift integration through shared posts for expanded parking capacity without excessive structural components.
  5. Infrared photoelectric detection system enhances safety by automatically stopping operation when obstructions are detected.
  6. Built-in automatic locking device ensures secure positioning at designated heights to prevent accidental movement.
  7. Advanced two-stage inverted hydraulic cylinder system with Italian-imported sealing rings prevents oil leakage for reliable operation.
Technical Specifications
Lifting Capacity 5940Lbs/2700kg
Lifting Height 2100mm
Lifting Time 2m/min
Min Height 5"/125mm
Column height 3500mm
Platform size 4173*2100mm
Motor Voltage 220V/380V
Frequency 50Hz or 60Hz
Phase 1Ph/3Ph
Net Weight 2310lbs/1050kg
System Components
Garage 2 Post Car Lifting Equipment Smart With DC24V Safety Control System 0 Garage 2 Post Car Lifting Equipment Smart With DC24V Safety Control System 1 Garage 2 Post Car Lifting Equipment Smart With DC24V Safety Control System 2 Garage 2 Post Car Lifting Equipment Smart With DC24V Safety Control System 3
Garage 2 Post Car Lifting Equipment Smart With DC24V Safety Control System 4
