TP232 Hydraulic 2 Post Parking Lift 6400Lbs/3200kg Capacity For Vehicle Storage

Name: TP232 Hydraulic 2 Post Parking Lift 6400Lbs/3200kg Capacity For Vehicle Storage
Brand: Guangzhou Eitel Technology Co., Ltd.
SKU: TP232
Price: 1,250.00 USD
Availability: InStock

Brand Name:	Iter
Model Number:	TP232
MOQ:	1set
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

Lifting Capacity:

3200kg

Release System:

Electrical Or Manual

Voltage:

220V/380V/as Your Request

Color:

Yellow/blue/red/green

Terms:

EXW/FOB/CIF

Volume:

3.5cbm

Packaging Details:

export standard, steel frame and carton

Supply Ability:

1000sets/month

Highlight:

3200kg Hydraulic Parking Lift

Hydraulic 2 Post Parking Lift

Vehicle Storage 2 Post Lift

Product Description

TP232 Hydraulic 2 Post Parking Lift 6400Lbs/3200kg Capacity For Vehicle Storage

Product Specifications

Lifting Capacity	3200kg
Release System	Electrical or manual
Voltage	220V/380V/as your request
Color	Yellow/blue/red/green
Terms	EXW/FOB/CIF
Volume	3.5cbm

TP232 High-Capacity 2 Post Parking Lift Features

Robust hydraulic system for smooth lifting and safe parking of SUVs and high-clearance vehicles

Efficient design for quick installation and operation in home garages, service centers, and parking spaces

Supports shared posts and multi-unit combinations to reduce support columns and installation costs

Multi-position dynamic unlocking mechanism with adjustable heights from 1600mm to 2100mm

Infrared photoelectric detection for automatic operation pause when obstacles are detected

Built-in automatic locking device for secure height positioning and accident prevention

Two-stage inverted hydraulic cylinder with Italian-imported sealing rings to prevent oil leakage

DC24V control voltage system for enhanced operator safety and electrical shock prevention

Technical Specifications

Specification	Value
Lifting Capacity	6400Lbs/3200kg
Lifting Height	2100mm
Lifting Time	60 seconds
Min Height	5"/125mm
Column Height	3500mm
Platform Size	4173*2100mm
Motor Voltage	220V/380V
Frequency	50Hz or 60Hz
Phase	1Ph/3Ph
Net Weight	2200bs/1100kg

Product Details

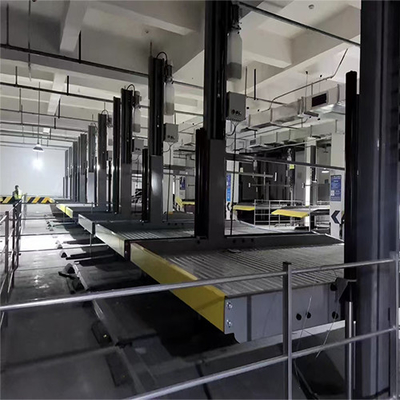

TP232 Hydraulic Parking Lift

Lift mechanism detail

Safety lock system

Limit switch

Base design
