T400A Scissor Lift 3kw For Professional Wheel Alignment Shops

T400A Scissor Lift 3kw For Professional Wheel Alignment Shops

Brand Name: Iter
Model Number: T400A
MOQ: 1set
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000sets/month
Detail Information
Place of Origin:
Guangdong
Certification:
CE
Color:
Red/blue/yellow/grey
Voltage:
380V/220V/as Your Request
Volume:
3cbm/set
Package:
Steel Frame And Carton
Warranty:
1 Year
Lifting Capacity:
4000kg
Packaging Details:
steel frame and carton
Supply Ability:
1000sets/month
Highlight:

T400A Scissor Lift

,

Wheel Alignment Shops Scissor Lift

,

3kw Wheel Alignment Scissor Lift

Product Description
T400A Scissor Lift 3kw For Professional Wheel Alignment Shops
Product Specifications
Attribute Value
Color red/blue/yellow/grey
Voltage 380V/220V/as your request
Volume 3cbm/set
Package steel frame and carton
Warranty 1 year
Lifting Capacity 4000kg
Premium Scissor Lift for Wheel Alignment & Vehicle Maintenance
The T400A scissor lift is engineered specifically for professional wheel alignment shops, offering exceptional stability and precision for automotive maintenance tasks.
Key Features
  • Space-saving ultra-thin structure with direct floor mounting capability
  • Advanced engineering for wheel alignment, undercarriage analysis, and routine servicing
  • Adjustable turntable for different wheelbases and vehicle specifications
  • Premium oil seals from Japan and US manufacturers for enhanced durability
  • 24V low-voltage power system for efficient operation and reduced electrical faults
  • Pneumatic unlocking device for quieter operation and improved user experience
Technical Specifications
Specification Value
Lifting Capacity 8800Lbs/4000kg
Lifting Height 65.7"/1670mm
Secondary Lifting Height 17"/430mm
Min Height 8.27"/210mm
Overall Length 165"/4500mm
Platform Width 26.36"/670mm
Width Between Platforms 32.28"/820mm
Motor Capacity 3kw
Lifting Time (Large Scissor) 30 seconds
Lifting Time (Jack) 20 seconds
Air Source Pressure 5-6kg/cm²
Motor Voltage 220V/380V
Frequency 50Hz/60Hz
Phase 1ph/3ph
Net Weight 4410Lbs/2000kg

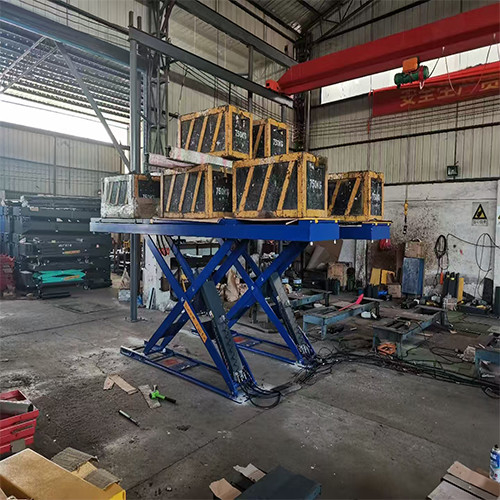

Product Images
T400A Scissor Lift 3kw For Professional Wheel Alignment Shops 0 T400A Scissor Lift 3kw For Professional Wheel Alignment Shops 1
Component Details
T400A Scissor Lift 3kw For Professional Wheel Alignment Shops 2 T400A Scissor Lift 3kw For Professional Wheel Alignment Shops 3
T400A Scissor Lift 3kw For Professional Wheel Alignment Shops 4 T400A Scissor Lift 3kw For Professional Wheel Alignment Shops 5
