T400A Space Saving Scissor Lift For Vehicle Alignment In Workshop

T400A Space Saving Scissor Lift For Vehicle Alignment In Workshop

Brand Name: Iter
Model Number: T400A
MOQ: 1set
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000sets/month
Detail Information
Place of Origin:
Guangdong
Certification:
CE
Color:
Red/blue/yellow/grey
Voltage:
380V/220V/as Your Request
Volume:
3cbm/set
Package:
Steel Frame And Carton
Warranty:
1 Year
Lifting Capacity:
4000kg
Packaging Details:
steel frame and carton
Supply Ability:
1000sets/month
Highlight:

Space Saving Scissor Lift

,

T400A Scissor Lift

,

Vehicle Alignment Scissor Lift

Product Description
T400A Space Saving Scissor Lift For Vehicle Alignment In Workshop
Product Specifications
Attribute Value
Color red/blue/yellow/grey
Voltage 380V/220V/as your request
Volume 3cbm/set
Package steel frame and carton
Warranty 1 year
Lifting Capacity 4000kg
Product Description

The T400A Space-Saving Scissor Lift is engineered for vehicle alignment and maintenance in workshops with limited space, offering superior performance and reliability.

Key Features
  • Extra-slim structure enables smooth on-ground installation, perfect for space-constrained workshops while maintaining low-profile accessibility
  • Ideal for precise alignment adjustments, comprehensive chassis assessments, and routine vehicle maintenance
  • Advanced Japanese and U.S. manufactured oil seals provide superior sealing performance and prevent hydraulic leaks
  • Low-voltage 24V power system enhances operational safety and minimizes electrical risks
  • Pneumatic release mechanism ensures smooth, silent unlocking for improved workshop efficiency
Technical Data
Specification Value
Lifting Capacity 8800Lbs/4000kg
Lifting Height 65.7"/1670mm
Secondary Lifting Height 17"/430mm
Min Height 8.27"/210mm
Overall Length 165"/4500mm
Platform Width 26.36"/670mm
Width Between Two Platforms 32.28"/820mm
Capacity of Motor 3kw
Lifting Time (Large Scissor) 30 seconds
Lifting Time (Jack) 20 seconds
Air Source Pressure 5-6kg/cm²
Motor Voltage 220V/380V
Frequency 50Hz/60Hz
Phase 1ph/3ph
Net Weight 4410Lbs/2000kg
Product Components

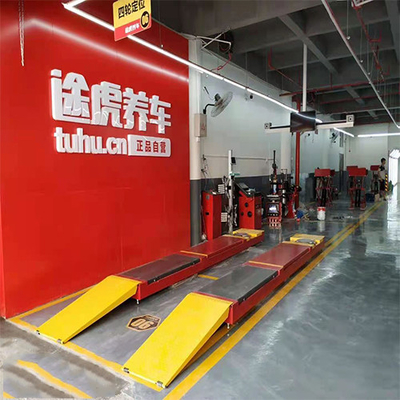

T400A Space Saving Scissor Lift For Vehicle Alignment In Workshop 0
T400A Scissor Lift
T400A Space Saving Scissor Lift For Vehicle Alignment In Workshop 1
Lift Mechanism Detail
T400A Space Saving Scissor Lift For Vehicle Alignment In Workshop 2
Control Box
T400A Space Saving Scissor Lift For Vehicle Alignment In Workshop 3
Circuit Board
T400A Space Saving Scissor Lift For Vehicle Alignment In Workshop 4
Aluminum Pump Station & Safety Lock
