4000kg T400A Ultra Thin Scissor Lift for Precision Wheel Alignment

4000kg T400A Ultra Thin Scissor Lift for Precision Wheel Alignment

Brand Name: Iter
Model Number: T400A
MOQ: 1set
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000sets/month
Detail Information
Place of Origin:
Guangdong
Certification:
CE
Color:
Red/blue/yellow/grey
Voltage:
380V/220V/as Your Request
Volume:
3cbm/set
Package:
Steel Frame And Carton
Warranty:
1 Year
Lifting Capacity:
4000kg
Packaging Details:
steel frame and carton
Supply Ability:
1000sets/month
Highlight:

4000kg Scissor Lift

,

Wheel Alignment Scissor Lift

,

Ultra Thin Scissor Lift

Product Description
4000kg T400A Ultra Thin Scissor Lift for Precision Wheel Alignment
Product Specifications
Color Options Red/Blue/Yellow/Grey
Voltage 380V/220V (customizable)
Volume 3 cbm/set
Package Steel frame and carton
Warranty 1 year
Lifting Capacity 4000kg (8800 lbs)
Key Features
  • Ultra-thin profile for easy ground mounting without structural modifications
  • Ideal for precision wheel alignment, chassis inspections, and vehicle maintenance
  • Fully adjustable turntable accommodates vehicles from compact cars to trucks
  • High-quality Japanese and US oil seals for leak-proof hydraulic performance
  • 24V low-tension system ensures safe operation with stable performance
  • Pneumatic unlocking system reduces noise for a quieter work environment
Technical Data
Lifting Capacity 8800 lbs / 4000 kg
Lifting Height 65.7" / 1670 mm
Secondary Lifting Height 17" / 430 mm
Minimum Height 8.27" / 210 mm
Overall Length 165" / 4500 mm
Platform Width 26.36" / 670 mm
Width Between Platforms 32.28" / 820 mm
Motor Capacity 3 kW
Lifting Time (Large Scissor) 30 seconds
Lifting Time (Jack) 20 seconds
Air Source Pressure 5-6 kg/cm²
Motor Voltage 220V/380V
Frequency 50Hz/60Hz
Phase 1ph/3ph
Net Weight 4410 lbs / 2000 kg
Product Components
4000kg T400A Ultra Thin Scissor Lift for Precision Wheel Alignment 0

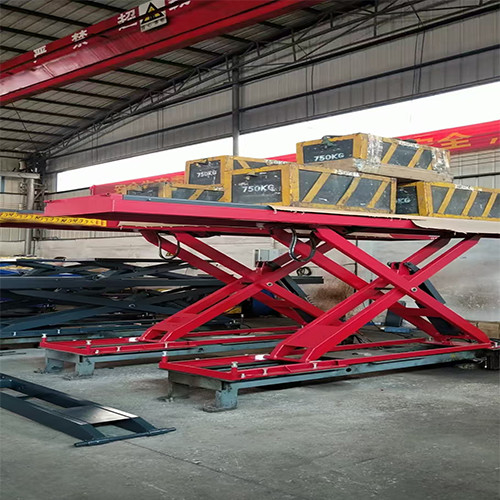

Scissor Lift Overview
4000kg T400A Ultra Thin Scissor Lift for Precision Wheel Alignment 1
Lift Mechanism Detail
4000kg T400A Ultra Thin Scissor Lift for Precision Wheel Alignment 2
Control Box
4000kg T400A Ultra Thin Scissor Lift for Precision Wheel Alignment 3
Circuit Board
4000kg T400A Ultra Thin Scissor Lift for Precision Wheel Alignment 4
Pump Station & Safety Lock
