T400D Large Vehicles Adjustable Scissor Lift with Extended Platform

T400D Large Vehicles Adjustable Scissor Lift with Extended Platform

Brand Name: Iter
Model Number: T400D
MOQ: 1 set
Payment Terms: L/C,T/T,Western Union
Supply Ability: 500 sets/month
Detail Information
Place of Origin:
Guangdong
Certification:
CE
Color:
Red/blue/yellow/grey
Voltage:
380V/220V As Your Request
Volume:
3cbm
Lifting Capacity:
8800bls /4000kg
Warranty:
1 Year
Brand:
Iter/OEM
Packaging Details:
steel frame and carton
Supply Ability:
500 sets/month
Highlight:

Adjustable Scissor Lift

,

Adjustable 2 Post Car Lift

,

Extended Platform Scissor Lift

Product Description
T400D Large Vehicles Adjustable Scissor Lift with Extended Platform
Product Specifications
Attribute Value
Color red/blue/yellow/grey
Voltage 380V/220V as your request
Volume 3cbm
Lifting Capacity 8800lbs / 4000kg
Warranty 1 year
Brand Iter/OEM
Product Features
  • The in-ground design allows for a more streamlined and professional workshop appearance by eliminating bulky above-ground structures, reducing trip hazards, and offering a user-friendly experience for mechanics performing alignment, lifting, or other vehicle maintenance tasks.
  • Designed for optimal functionality, this lift supports precise alignment, thorough chassis checks, and various maintenance tasks, allowing technicians to work with accuracy and confidence on a range of vehicles.
  • The turntable's variable positioning capability allows for easy modifications, making it possible to work on an extensive range of vehicles with different wheelbase and chassis configurations.
  • This system includes an extendable central jack, reaching 500mm, which provides additional support for vehicles that require extra lift height.
  • The use of an aluminum motor provides excellent thermal management, helping to regulate heat levels effectively and preventing overheating, which ultimately contributes to a more durable and efficient performance over prolonged periods of operation.
  • The integrated self-locking safety mechanism ensures that the lift remains securely in place while elevated, reducing the risk of sudden drops and enhancing operator confidence in the system's reliability.
  • Equipped with a pneumatic release mechanism, this system helps to decrease sound emissions, ensuring a more pleasant and noise-controlled environment for both technicians and customers.
  • Air-powered release minimizes operational noise, which makes the workplace less exhausting.
Technical Specifications
Specification Value
Lifting Capacity 8800Lbs/4000kg
Secondary Lifting Height 18.5"/470mm
Lifting Height 78.35"/1990mm
Lifting Time for Jack 20 seconds
Lifting Time for Large Scissor 30 seconds
Min Height 13"/330mm
Air Source Pressure 5-6kg/cm²
Platform Width 24"/620mm
Width between two platforms 33.5"/850mm
Overall Length 177.17"/4500mm
Motor Voltage 220V/380V
Frequency 50Hz or 60Hz
Phase 1Ph/3Ph
Net Weight 4091Lbs/1856kg
Product Images

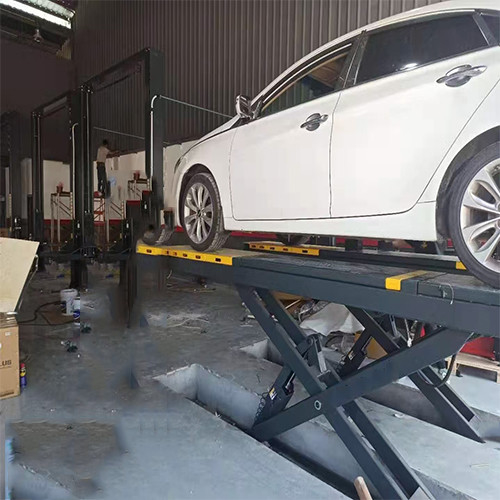

T400D Large Vehicles Adjustable Scissor Lift with Extended Platform 0

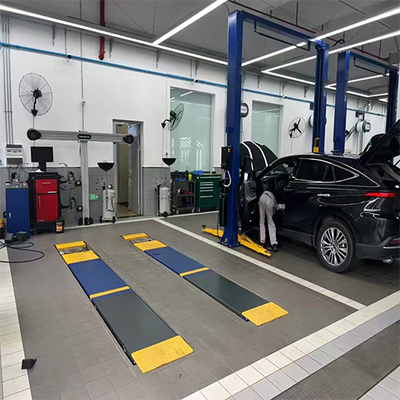

T400D Large Vehicles Adjustable Scissor Lift with Extended Platform 1
Safety lock system and secondary jacks
T400D Large Vehicles Adjustable Scissor Lift with Extended Platform 2
T400D Large Vehicles Adjustable Scissor Lift with Extended Platform 3
Different sizes for the turntable cover and control box
T400D Large Vehicles Adjustable Scissor Lift with Extended Platform 4
T400D Large Vehicles Adjustable Scissor Lift with Extended Platform 5
Aluminum pump station for easy cooling and circuit board
