T240M-1 2 Post Auto Lift 8800bs/4000kg Capacity With Safety Lock System

T240M-1 2 Post Auto Lift 8800bs/4000kg Capacity With Safety Lock System

Brand Name: Iter
Model Number: T240M-1
MOQ: 1set
Payment Terms: T/T,Western Union
Supply Ability: 1000 sets/month
Detail Information
Place of Origin:
China
Certification:
CE
Color:
Red/blue/yellow/grey
Voltage:
220V/380V/As Your Request
Volume:
1.5 Cbm
Release System:
Single Point Manual Release
Payment Terms:
EXW/FOB/CIF
Lifting Capacity:
8800lbs
Packaging Details:
steel frame with carton
Supply Ability:
1000 sets/month
Highlight:

T240M-1 2 Post Auto Lift

,

Safety Lock 2 Post Auto Lift

,

4000kg 2 Post Auto Lift

Product Description
T240M-1 2 Post Auto Lift 8800bs/4000kg Capacity With Safety Lock System
Product Specifications
Color Options Red/Blue/Yellow/Grey
Voltage 220V/380V/As your request
Volume 1.5 cbm
Release System Single point manual release
Payment Terms EXW/FOB/CIF
Lifting Capacity 8800lbs
Product Description

The T240M-1 Economical 2-Post Auto Lift combines cost-effectiveness with superior safety features, including an advanced lock system for reliable vehicle servicing.

Key Features
  • Unblocked base design provides easy access to vehicle undersides, reducing service downtime
  • Ergonomically positioned single-side release mechanism enhances both safety and operational convenience
  • High-performance hydraulic cylinder equipped with Japanese and American oil seals for durability
  • Asymmetric arms design accommodates larger vehicles up to 2860mm width
  • Optional premium imported pump available for enhanced reliability and performance
  • Standard cast-iron motor cover with optional aluminum cover for customization
  • Flexible multi-voltage power configuration adapts to various electrical systems
Technical Specifications
Lifting Capacity 8800bs/4000kg
Lifting Height 71"/1800mm
Lifting Time 50 seconds
Overall Height 112"/2856mm
Overall Width 138"/3500mm
Width between Columns 112"/2860mm
Motor Voltage 220V/380V
Frequency 50Hz/60Hz
Phase 1ph/3ph
Net Weight 1439lbs/653kg
Product Details

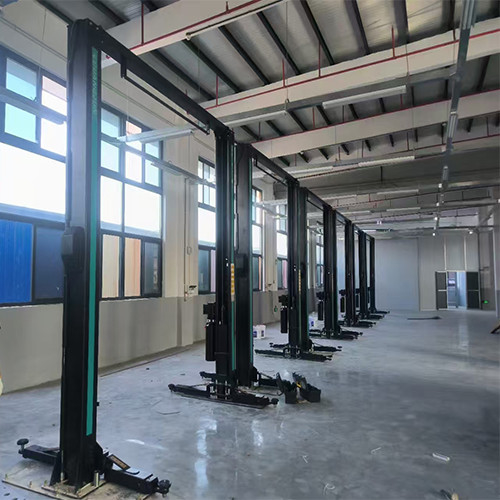

T240M-1 2 Post Auto Lift 8800bs/4000kg Capacity With Safety Lock System 0
T240M-1 2 Post Auto Lift 8800bs/4000kg Capacity With Safety Lock System 1
T240M-1 2 Post Auto Lift 8800bs/4000kg Capacity With Safety Lock System 2
Single point release
T240M-1 2 Post Auto Lift 8800bs/4000kg Capacity With Safety Lock System 3
3+2 arm design
T240M-1 2 Post Auto Lift 8800bs/4000kg Capacity With Safety Lock System 4
Optional rubber support
T240M-1 2 Post Auto Lift 8800bs/4000kg Capacity With Safety Lock System 5
Carriage design
