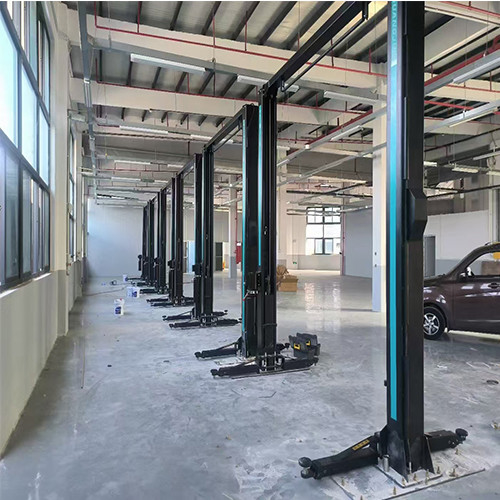

T240M-1 2 Post Hoist User Friendly With 50seconds Lifting Time

Name: T240M-1 2 Post Hoist User Friendly With 50seconds Lifting Time
Brand: Guangzhou Eitel Technology Co., Ltd.
SKU: T240M-1
Price: 1,250.00 USD
Availability: InStock

Brand Name:	Iter
Model Number:	T240M-1
MOQ:	1set
Payment Terms:	T/T,Western Union
Supply Ability:	1000 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Color:

Red/blue/yellow/grey

Voltage:

220V/380V/As Your Request

Volume:

1.5 Cbm

Release System:

Single Point Manual Release

Payment Terms:

EXW/FOB/CIF

Lifting Capacity:

8800lbs

Packaging Details:

steel frame with carton

Supply Ability:

1000 sets/month

Highlight:

T240M-1 2 Post Hoist

User Friendly 2 Post Hoist

50seconds Lifting Time 2 Post Hoist

Product Description

T240M-1 User-Friendly 2-Post hoist with Simple, Intuitive Controls

Features

The lift features a clear and accessible floor area that simplifies tasks like inspections and repairs.
This mechanism uses a single-point manual release, ensuring that operators can quickly access the lift controls.
With internationally sourced oil seals, the oil cylinder achieves consistent, high-standard performance.
The uniquely arranged asymmetric arms provide generous clearance for vehicles with wider wheel tracks up to 2860mm.
Enhance your lift's capabilities with an optional pump imported for its high-performance features.
The economical cast-iron motor cover offers exceptional durability, with an optional aluminum cover available for customers preferring a lighter setup.
The lift offers a multi-voltage power supply option, allowing for flexible installation in regions with varying voltage standards.

Technical data

Lifting Capacity	8800bs/4000kg
Lifting Height	71"/1800mm
Lifting Time	50seconds
Overall Height	112"/2856mm
Overall Width	138"/3500mm
Width between Columns	112"/2860mm
Motor Voltage	220V/380V
Frequency	50Hz/60Hz
Phase	1ph/3ph
Net weight	1439lbs/653kg
