T240M-1 2 Post Auto Hoist 1ph/3ph With Adjustable Lifting Arms

T240M-1 2 Post Auto Hoist 1ph/3ph With Adjustable Lifting Arms

Brand Name: Iter
Model Number: T240M-1
MOQ: 1set
Payment Terms: T/T,Western Union
Supply Ability: 1000 sets/month
Detail Information
Place of Origin:
China
Certification:
CE
Color:
Red/blue/yellow/grey
Voltage:
220V/380V/As Your Request
Volume:
1.5 Cbm
Release System:
Single Point Manual Release
Payment Terms:
EXW/FOB/CIF
Lifting Capacity:
8800lbs
Packaging Details:
steel frame with carton
Supply Ability:
1000 sets/month
Highlight:

Adjustable Lifting Arms 2 Post Hoist

,

adjustable 2 Post Auto Hoist

,

2 Post Auto Hoist 1ph

Product Description
T240M-1 2 Post Auto Hoist 1ph/3ph With Adjustable Lifting Arms
Product Specifications
Color:
red/blue/yellow/grey
Voltage:
220V/380V/As your request
Volume:
1.5 cbm
Release System:
single point manual release
Payment Terms:
EXW/FOB/CIF
Lifting Capacity:
8800lbs
Professional 2-Post Auto Hoist Features
  • Barrier-free undercarriage design provides easy vehicle access for mechanics
  • Single-sided lock release system for convenient operation
  • Asymmetric lifting arm design enhances clearance for wider vehicles
  • High-performance cylinders with premium Japanese and American oil seals
  • Standard cast-iron cover motor with optional aluminum cover available
  • Optional imported pump for enhanced performance and durability
  • Multi-voltage power option adapts to diverse electrical environments
Technical Specifications
Lifting Capacity 8800lbs/4000kg
Lifting Height 71"/1800mm
Lifting Time 50 seconds
Overall Height 112"/2856mm
Overall Width 138"/3500mm
Width between Columns 109"/2860mm
Motor Voltage 220V/380V
Frequency 50Hz/60Hz
Phase 1ph/3ph
Net weight 1439lbs/653kg
Product Details
T240M-1 2 Post Auto Hoist 1ph/3ph With Adjustable Lifting Arms 0

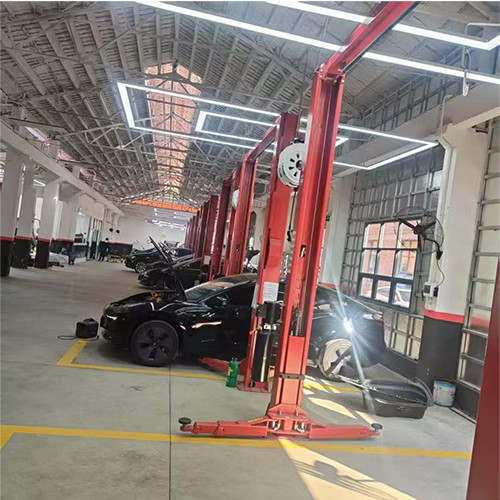

T240M-1 2 Post Auto Hoist overview
T240M-1 2 Post Auto Hoist 1ph/3ph With Adjustable Lifting Arms 1
Adjustable lifting arms
T240M-1 2 Post Auto Hoist 1ph/3ph With Adjustable Lifting Arms 2
Single point release mechanism
T240M-1 2 Post Auto Hoist 1ph/3ph With Adjustable Lifting Arms 3
3+2 arm design
T240M-1 2 Post Auto Hoist 1ph/3ph With Adjustable Lifting Arms 4
Optional rubber support and carriage design
