T240M-1 Reliable 2 Post Auto Lift for Tire / Brake / Suspension

T240M-1 Reliable 2 Post Auto Lift for Tire / Brake / Suspension

Brand Name: Iter
Model Number: T240M-1
MOQ: 1set
Payment Terms: T/T,Western Union
Supply Ability: 1000 sets/month
Detail Information
Place of Origin:
China
Certification:
CE
Color:
Red/blue/yellow/grey
Voltage:
220V/380V/As Your Request
Volume:
1.5 Cbm
Release System:
Single Point Manual Release
Payment Terms:
EXW/FOB/CIF
Lifting Capacity:
8800lbs
Packaging Details:
steel frame with carton
Supply Ability:
1000 sets/month
Highlight:

Tire 2 Post Auto Lift

,

Brake 2 Post Auto Lift

,

Suspension 2 Post Auto Lift

Product Description
T240M-1 Reliable 2 Post Auto Lift for Tire / Brake / Suspension
Product Specifications
Color Options Red/Blue/Yellow/Grey
Voltage 220V/380V/As your request
Volume 1.5 cbm
Release System Single point manual release
Payment Terms EXW/FOB/CIF
Lifting Capacity 8800lbs
Product Description

The T240M-1 Reliable 2-Post Auto Lift is engineered for efficient tire, brake, and suspension work with superior performance and durability.

Key Features
  • Spacious, unobstructed base design for quicker and more convenient routine servicing
  • One-touch manual release system for quick and secure operation
  • High-performance oil seals imported from Japan and USA for reliable function
  • Intelligent asymmetric arm system accommodates vehicles up to 2860mm in width
  • Durable motor with sturdy cast-iron cover (aluminum cover option available)
  • Optional imported pump available for enhanced system performance
  • Multi-voltage power supply option for compatibility with various power sources
Technical Specifications
Lifting Capacity 8800lbs/4000kg
Lifting Height 71"/1800mm
Lifting Time 50 seconds
Overall Height 112"/2856mm
Overall Width 138"/3500mm
Width between Columns 109"/2860mm
Motor Voltage 220V/380V
Frequency 50Hz/60Hz
Phase 1ph/3ph
Net Weight 1439lbs/653kg
Release System Single point release
Product Details
T240M-1 Reliable 2 Post Auto Lift for Tire / Brake / Suspension 0

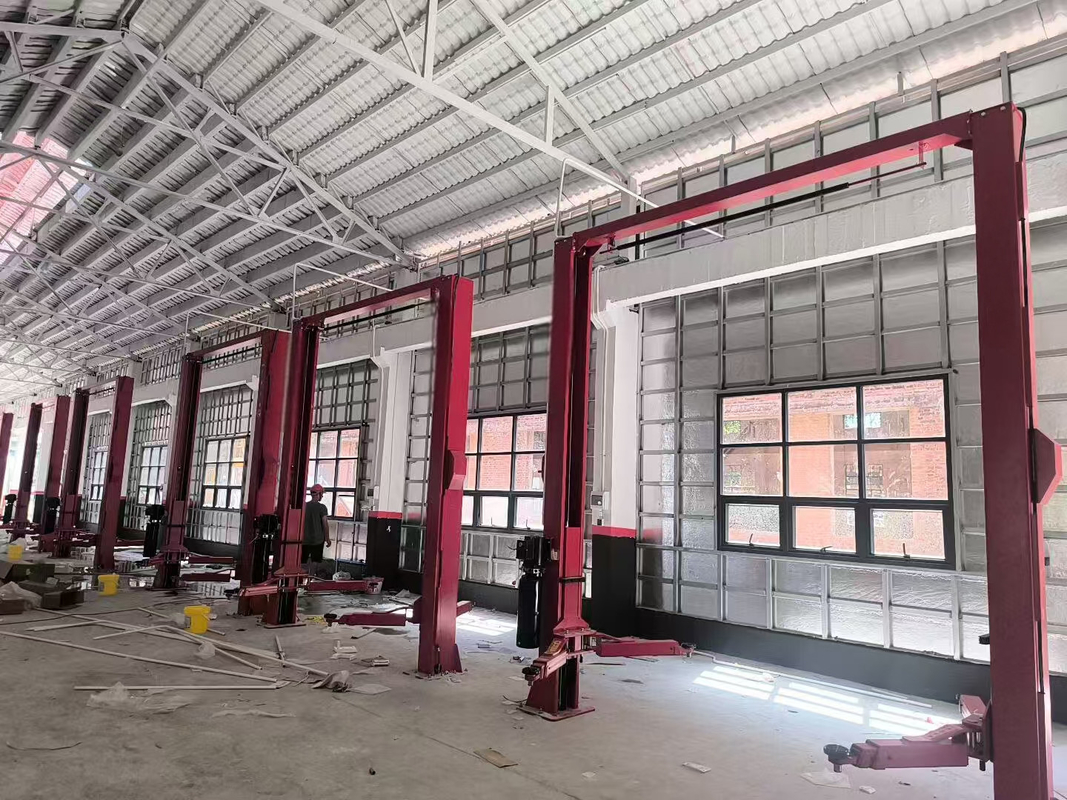

Two-post auto lift structure
T240M-1 Reliable 2 Post Auto Lift for Tire / Brake / Suspension 1
Single point release system
T240M-1 Reliable 2 Post Auto Lift for Tire / Brake / Suspension 2
3+2 arm configuration
T240M-1 Reliable 2 Post Auto Lift for Tire / Brake / Suspension 3
Optional rubber support pads
T240M-1 Reliable 2 Post Auto Lift for Tire / Brake / Suspension 4
Precision carriage design
