T240M Gantry Car Lift for Versatile Vehicle Repair in the workshop or garage

T240M Gantry Car Lift for Versatile Vehicle Repair in the workshop or garage

Brand Name: Iter
Model Number: T240M
MOQ: 1set
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000sets/month
Detail Information
Place of Origin:
Guangdong
Certification:
CE
Lifting Capacity:
4000kg
Release System:
Manual
Voltage:
220V/380V/as Your Request
Color:
Yellow/blue/red/green
Terms:
EXW/FOB/CIF
Volume:
1.5cbm
Packaging Details:
export standard, steel frame and carton
Supply Ability:
1000sets/month
Highlight:

garage car lifting equipment

,

garage 2 post car lift

Product Description
T240M Gantry Car Lift for Versatile Vehicle Repair in the Workshop or Garage
Product Specifications
Lifting Capacity 4000kg
Release System Manual
Voltage 220V/380V/as your request
Color Yellow/Blue/Red/Green
Terms EXW/FOB/CIF
Volume 1.5cbm
Product Features
  • Clear-floor layout eliminates obstructions for seamless vehicle movement and repair work
  • Manual safety release system on both sides with optional single-point release
  • Precision-engineered oil seals enhance hydraulic stability and prevent fluid leakage
  • Angled arm configuration optimizes lifting space for larger vehicles while maintaining balance
  • Heavy-duty motor housing with optional aluminum shell for better heat dissipation
  • Adjustable voltage options for global workshop integration
Technical Data
Lifting Capacity 9000lbs/4000kg
Lifting Height 71"/1800mm
Lifting Time 50 seconds
Overall Height 112"/2856mm
Overall Width 138"/3500mm
Width between Columns 109"/2760mm
Motor Voltage 220V/380V
Frequency 50Hz/60Hz
Phase 1ph/3ph
Net Weight 1439lbs/653kg
Product Images

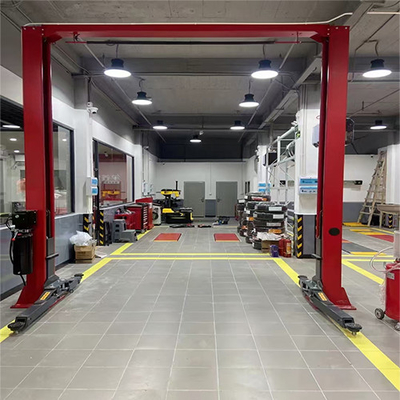

T240M Gantry Car Lift for Versatile Vehicle Repair in the workshop or garage 0
T240M Gantry Car Lift for Versatile Vehicle Repair in the workshop or garage 1
T240M Gantry Car Lift for Versatile Vehicle Repair in the workshop or garage 2
Stranger arms 3+2 design
T240M Gantry Car Lift for Versatile Vehicle Repair in the workshop or garage 3
Durable steel oil tank
