2 Post Car Lift 9000lbs Capacity Auto Overhead Lift with Combo Symmetrical and Asymmetrical Support Arms for Garage Shop

2 Post Car Lift 9000lbs Capacity Auto Overhead Lift with Combo Symmetrical and Asymmetrical Support Arms for Garage Shop

Brand Name: Iter
Model Number: T240M
MOQ: 1set
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000sets/month
Detail Information
Place of Origin:
Guangdong
Certification:
CE
Lifting Capacity:
4000kg
Release System:
Manual
Voltage:
220V/380V/as Your Request
Color:
Yellow/blue/red/green
Terms:
EXW/FOB/CIF
Volume:
1.5cbm
Packaging Details:
export standard, steel frame and carton
Supply Ability:
1000sets/month
Highlight:

garage 2 post car lift

,

garage 2 post car storage lift

Product Description
2 Post Car Lift 9000lbs Capacity Auto Overhead Lift with Combo Symmetrical and Asymmetrical Support Arms
Key Specifications
Attribute Value
Lifting Capacity 4000kg (9000lbs)
Release System Manual
Voltage 220V/380V (customizable)
Color Options Yellow, Blue, Red, Green
Shipping Terms EXW/FOB/CIF
Volume 1.5cbm
Product Features
  • Clear floor design for convenient vehicle service access
  • Manual safety lock release system with single point release option
  • High-performance oil cylinder with Japanese and American oil seals
  • Asymmetric arms design (2850mm or 3000mm width options available)
  • Durable cast-iron cover motor (aluminum cover motor optional)
  • Iron tank construction for long-lasting durability
  • Optional imported pump for enhanced performance
  • Multi-voltage power supply compatibility
Technical Specifications
Parameter Value
Lifting Height 71" (1800mm)
Lifting Time 50 seconds
Overall Height 112" (2856mm)
Overall Width 138" (3500mm)
Width Between Columns 109" (2760mm)
Frequency 50Hz/60Hz
Phase 1ph/3ph
Net Weight 1439lbs (653kg)
Product Images

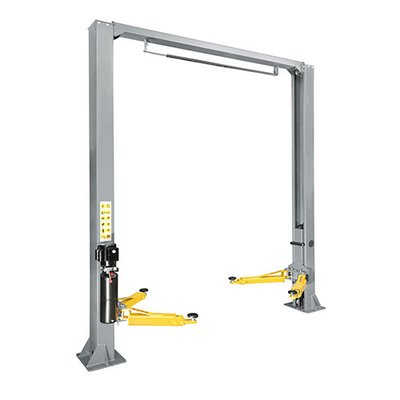

2 Post Car Lift 9000lbs Capacity Auto Overhead Lift with Combo Symmetrical and Asymmetrical Support Arms for Garage Shop 0 2 Post Car Lift 9000lbs Capacity Auto Overhead Lift with Combo Symmetrical and Asymmetrical Support Arms for Garage Shop 1 2 Post Car Lift 9000lbs Capacity Auto Overhead Lift with Combo Symmetrical and Asymmetrical Support Arms for Garage Shop 2
