Workshop Car Lifting Equipment Movable With Min. Height 110mm

Workshop Car Lifting Equipment Movable With Min. Height 110mm

Brand Name: Iter
Model Number: T3.0
MOQ: 1 set
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000set/month
Detail Information
Place of Origin:
Guangdong
Certification:
CE
Color:
Blue/red/grey/yellow
Voltage:
220V/380V/as Your Request
Warranty:
1 Year
Volume:
0.65 Cbm
Lifting Capacity:
3000kg
Install Way:
Fixed Or Movable
Packaging Details:
export standard, steel frame and plywood
Supply Ability:
1000set/month
Highlight:

Movable Car Lifting Equipment

,

Workshop Car Lifting Equipment

,

Min. Height 110mm Car Lift

Product Description
Workshop Car Lifting Equipment Movable With Min. Height 110mm
Key Specifications
Color Options: Blue/Red/Grey/Yellow
Voltage: 220V/380V (Customizable)
Warranty: 1 Year
Volume: 0.65 cbm
Lifting Capacity: 3000kg (6600 lbs)
Installation: Fixed or Movable
Product Description

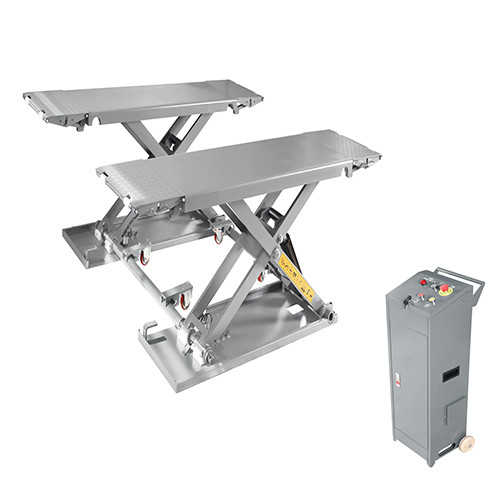

This movable car lift is designed for efficient workshop service with a minimum height of just 110mm, eliminating the need for foundation digging. Its compact design makes it ideal for tire changing and vehicle repairs.

Key Features
  • Ultra-low profile design (110mm minimum height)
  • Compact footprint for space-efficient operation
  • Lightweight movable configuration (fixed option available)
  • Safety lock mechanism for secure operation
  • Simple installation with mechanical safety locks
  • Pneumatic release system for quiet operation
Technical Specifications
Specification Value
Lifting Capacity 6600 lbs / 3000 kg
Lifting Height 36" / 930 mm
Lifting Time 35 seconds
Minimum Height 4.5" / 115 mm
Overall Length 80" / 2030 mm
Platform Width 20" / 510 mm
Overall Width 72" / 1840 mm
Platform Length 60" / 1420 mm
Motor Voltage 220V/380V
Frequency 50Hz or 60Hz
Phase 1Ph/3Ph
Net Weight 1348 lbs / 613 kg
