3500kg Super Thin Alignment Scissor Lift With Jack Elector Hydraulic Car Lift

3500kg Super Thin Alignment Scissor Lift With Jack Elector Hydraulic Car Lift

Brand Name: Iter/OEM
Model Number: T350Z
MOQ: 1set
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000sets/month
Detail Information
Place of Origin:
Guangdong
Certification:
CE
Color:
Red/blue/yellow/grey
Voltage:
220V/380V/as Your Request
Warranty:
1 Year
Volume:
3 Cbm
Lifting Capacity:
3500kg
Lifting Height:
1670mm
Packaging Details:
export standard, steel frame and carton
Supply Ability:
1000sets/month
Highlight:

Super Thin Alignment Scissor Lift

,

3500kg Alignment Scissor Lift

,

Elector Hydraulic Car Lift

Product Description
3500kg Super Thin Alignment Scissor Lift With Jack Elector Hydraulic Car Lift
Product Specifications
Color:
red/blue/yellow/grey
Voltage:
220V/380V/as your request
Warranty:
1 year
Volume:
3 cbm
Lifting Capacity:
3500kg
Lifting Height:
1670mm
Product Description

3500kg super-thin alignment scissors lift with jack elector hydraulic car lift, designed for professional automotive service and maintenance.

  • Ultra-thin design for easy ground mounting
  • Ideal for alignment, chassis checking, and vehicle maintenance
  • Adjustable turntable suitable for various vehicle types
  • Japanese and American oil seals ensure optimal cylinder performance
  • Low tension 24V power system
  • Pneumatic unlock device reduces operational noise
  • Aluminum motor prevents overheating
  • Equipped with jack trolley guide rail (secondary jack optional)
Technical Data
Lifting Capacity 8000Lbs/3500kg
Lifting Height 66"/1670mm
Secondary Lifting Height 18"/460mm
Min Height 7.8"/200mm
Overall length 177"/4500mm
Platform Width 25"/640mm
Width Between Two Platforms 38"/967mm
Lifting time for large scissor 30seconds
Lifting time for jack 20seconds
Capacity of Motor 3kw
Air source Pressure 5-6kg/cm²
Motor Voltage 220V/380V
Frequency 50Hz/60Hz
Phase 1ph/3ph
Net weight 4136Lbs/1880kg
Product Images
3500kg Super Thin Alignment Scissor Lift With Jack Elector Hydraulic Car Lift 0

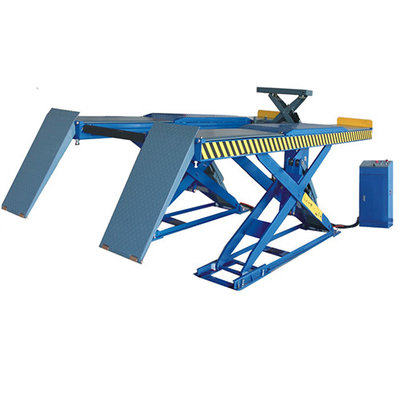

Main view of scissor lift
3500kg Super Thin Alignment Scissor Lift With Jack Elector Hydraulic Car Lift 1

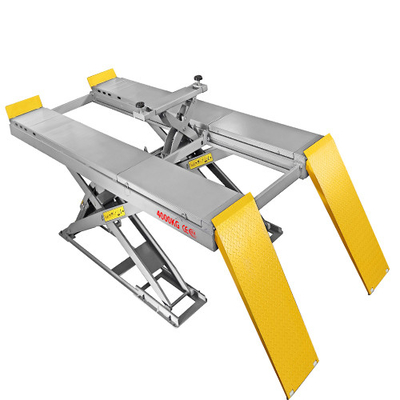

Close-up of mechanism
3500kg Super Thin Alignment Scissor Lift With Jack Elector Hydraulic Car Lift 2
Secondary jack
3500kg Super Thin Alignment Scissor Lift With Jack Elector Hydraulic Car Lift 3
Connect beam
3500kg Super Thin Alignment Scissor Lift With Jack Elector Hydraulic Car Lift 4
Safety lock and pump station
