4000kg super thin wheel alignment scissors lift with 4500mm length platform

4000kg super thin wheel alignment scissors lift with 4500mm length platform

Brand Name: Iter
Model Number: T400C
MOQ: 1set
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000sets/month
Detail Information
Place of Origin:
Guangdong
Certification:
CE
Color:
Red/blue/yellow/grey
Voltage:
380V/220V/as Your Request
Volume:
3cbm/set
Package:
Steel Frame And Carton
Warranty:
1 Year
Lifting Capacity:
4000kg
Packaging Details:
steel frame and carton
Supply Ability:
1000sets/month
Highlight:

4000kg car lifting equipment

,

4000kg 2 post car lift

Product Description
4000kg Super Thin Wheel Alignment Scissors Lift with 4500mm Length Platform
Product Specifications
Attribute Value
Color Red/Blue/Yellow/Grey
Voltage 380V/220V (customizable)
Volume 3cbm/set
Package Steel frame and carton
Warranty 1 year
Lifting Capacity 4000kg
Key Features
  • Ultra-thin design for easy ground mounting
  • Ideal for wheel alignment, chassis checking, and vehicle maintenance
  • Adjustable turntable accommodates various vehicle types
  • Japanese and American oil seals ensure optimal cylinder performance
  • Low tension 24V power system
  • Pneumatic unlock device reduces operational noise
  • Aluminum motor prevents overheating
Technical Specifications
Lifting Capacity 8800Lbs/4000kg
Lifting Height 65.7"/1670mm
Secondary Lifting Height 17"/430mm
Min Height 8.27"/210mm
Overall Length 165"/4500mm
Platform Width 26.36"/670mm
Width Between Platforms 32.28"/820mm
Motor Capacity 3kw
Lifting Time (Large Scissor) 30 seconds
Lifting Time (Jack) 20 seconds
Air Source Pressure 5-6kg/cm²
Motor Voltage 220V/380V
Frequency 50Hz/60Hz
Phase 1ph/3ph
Net Weight 4410Lbs/2000kg
Product Components
4000kg super thin wheel alignment scissors lift with 4500mm length platform 0

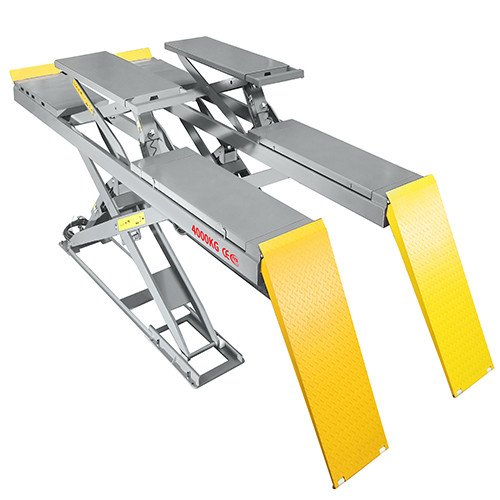

Full Lift Overview
4000kg super thin wheel alignment scissors lift with 4500mm length platform 1
Platform Detail
4000kg super thin wheel alignment scissors lift with 4500mm length platform 2
Control Box
4000kg super thin wheel alignment scissors lift with 4500mm length platform 3
Circuit Board
4000kg super thin wheel alignment scissors lift with 4500mm length platform 4
Pump Station & Safety Lock
This professional-grade 4000kg wheel alignment scissors lift combines ultra-thin design with robust lifting capacity, making it ideal for automotive service centers requiring precise alignment capabilities and efficient vehicle maintenance.
