4000kg Wheel alignment scissors lift with 4.5M platform with CE

4000kg Wheel alignment scissors lift with 4.5M platform with CE

Brand Name: Iter
Model Number: T400D
MOQ: 1 set
Payment Terms: L/C,T/T,Western Union
Supply Ability: 5000sets/month
Detail Information
Place of Origin:
Guangdong
Certification:
CE
Color:
Red/blue/yellow/grey
Voltage:
380V/220V As Your Request
Volume:
3cbm
Package:
Export Standard
Warranty:
1 Year
Brand:
Iter/OEM
Packaging Details:
steel frame and carton
Supply Ability:
5000sets/month
Highlight:

4000kg car lifting equipment

,

4000kg 2 post car lift

Product Description

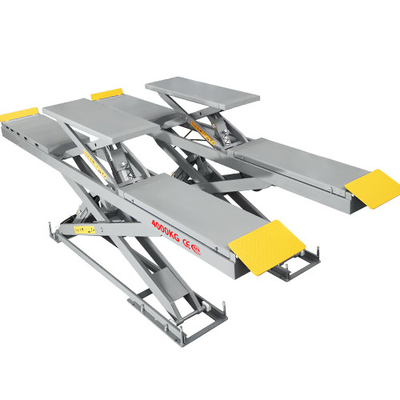

4000kg Wheel Alignment Scissors Lift with 4.5M Platform (CE Certified)
Product Specifications
Color Red/Blue/Yellow/Grey
Voltage 380V/220V (customizable)
Volume 3 cbm
Package Export standard
Warranty 1 year
Brand Iter/OEM
Product Features
In-ground installation design
Ideal for wheel alignment, chassis checking, and vehicle maintenance
Adjustable turntable position accommodates various vehicle types
Central jack with 500mm maximum lifting height, extensible for longer vehicles
Aluminum motor prevents overheating
Mechanical safety self-lock system ensures secure operation
Pneumatic release system reduces noise during service
Technical Data
Lifting Capacity 8800Lbs/4000kg
Secondary Lifting Height 18.5"/470mm
Lifting Height 78.35"/1990mm
Lifting Time for Jack 20 seconds
Lifting Time for Large Scissor 30 seconds
Min Height 13"/330mm
Air Source Pressure 5-6kg/cm²
Platform Width 24"/620mm
Width Between Platforms 33.5"/850mm
Overall Length 177.17"/4500mm
Motor Voltage 220V/380V
Frequency 50Hz or 60Hz
Phase 1Ph/3Ph
Net Weight 4091Lbs/1856kg
Product Images
4000kg Wheel alignment scissors lift with 4.5M platform with CE 0
Safety lock system
4000kg Wheel alignment scissors lift with 4.5M platform with CE 1
Secondary jacks
4000kg Wheel alignment scissors lift with 4.5M platform with CE 2
Turntable cover options
4000kg Wheel alignment scissors lift with 4.5M platform with CE 3
Control box
4000kg Wheel alignment scissors lift with 4.5M platform with CE 4
Aluminum pump station
4000kg Wheel alignment scissors lift with 4.5M platform with CE 5
Circuit board
4000kg Wheel alignment scissors lift with 4.5M platform with CE 6
Complete system overview
