Basement Style 2 Post Car Lift With 2 Sides Release Or Single Side Release CE Certificate

Basement Style 2 Post Car Lift With 2 Sides Release Or Single Side Release CE Certificate

Brand Name: ITER
Model Number: T240B
MOQ: 1set
Payment Terms: L/C,T/T,Western Union
Supply Ability: 500/month
Detail Information
Place of Origin:
GUANGDONG
Certification:
CE
Color:
Red/grey/yellow/blue
Voltage:
As Your Request
Package:
Export Standard,steel Frame With Carton Or Plywood
Brand:
Iter Or OEM
Volume:
1.5CBM/set
Packaging Details:
steel frame and carton
Supply Ability:
500/month
Highlight:

Basement Style 2 Post Lift

,

CE 2 Post Car Lift

,

2 Sides Release Car Lift

Product Description
Basement Style 2 Post Car Lift With 2 Sides Release Or Single Side Release CE Certificate
Product Specifications
Attribute Value
Color Red/Grey/Yellow/Blue
Voltage As your request
Package Export standard, steel frame with carton or plywood
Brand Iter or OEM
Volume 1.5CBM/set
Product Features
  • Driven by double hydraulic cylinders with chain-type elevating system
  • Strong and reliable steel cables ensure smooth ascends and descends
  • Two sides manual safety lock release system
  • Asymmetric design allows auto door opening with narrow pillar width
  • Economical yet reliable cast-iron cover motor (aluminum motor optional)
  • Optional imported pumping device
  • Multi-voltage power supply options available
Technical Specifications
Specification Value
Lifting Capacity 8800lbs/4000kg
Lifting Height 71"/1800mm
Lifting Time 50 seconds
Overall Height 111"/2816mm
Overall Width 138"/3500mm
Width between Columns 110"/2800mm
Motor Voltage 220V/380V
Frequency 50Hz/60Hz
Phase 1ph/3ph
Net Weight 1417lbs/643kg
Product Images

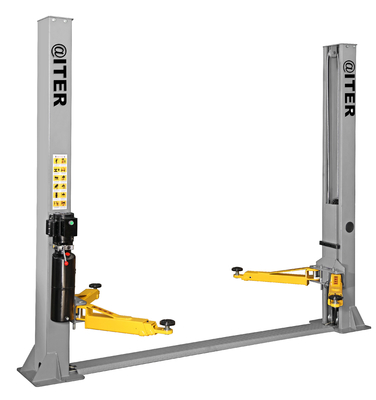

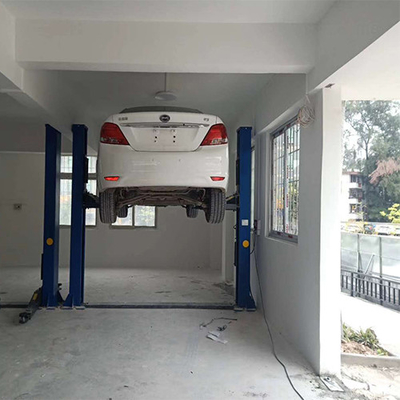

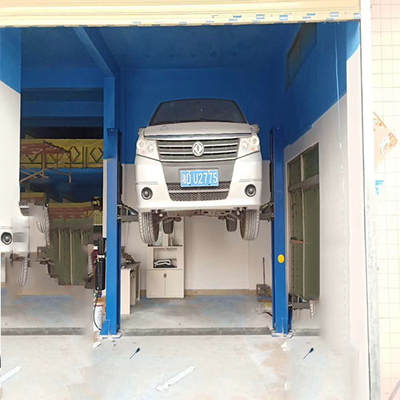

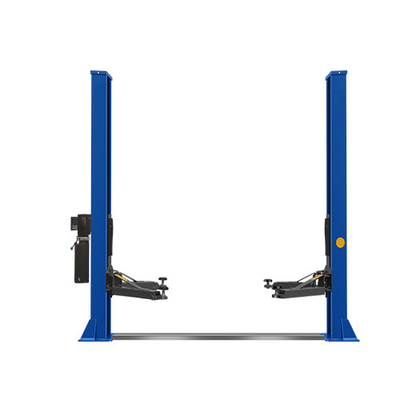

Basement Style 2 Post Car Lift With 2 Sides Release Or Single Side Release CE Certificate 0 Basement Style 2 Post Car Lift With 2 Sides Release Or Single Side Release CE Certificate 1 Basement Style 2 Post Car Lift With 2 Sides Release Or Single Side Release CE Certificate 2 Basement Style 2 Post Car Lift With 2 Sides Release Or Single Side Release CE Certificate 3
