Asymmetric Arms 2 Post Car Lift Cylinder Directly Drived

Asymmetric Arms 2 Post Car Lift Cylinder Directly Drived

Brand Name: Ater
Model Number: T245MZ
MOQ: 1set
Price: USD1350~$1150 EXW
Payment Terms: T/T,Western Union
Supply Ability: 1000/month
Detail Information
Place of Origin:
China
Certification:
CE
Color:
Red/blue/yellow/grey
Voltage:
220V/380V/As Your Request
Volume:
1.5 Cbm
Volume:
1.5 Cbm
Release System:
Single Point Manual Release
Release System:
Single Point Manual Release
Payment Terms:
EXW/FOB/CIF
Payment Terms:
EXW/FOB/CIF
Lifting Capacity:
9900lbs
Lifting Capacity:
9900lbs
Packaging Details:
steel frame with carton
Supply Ability:
1000/month
Highlight:

2 Post Car Lift Cylinder

,

Directly Drived Car Lift Cylinder

,

Asymmetric Arms 2 Post Car Lift

Product Description

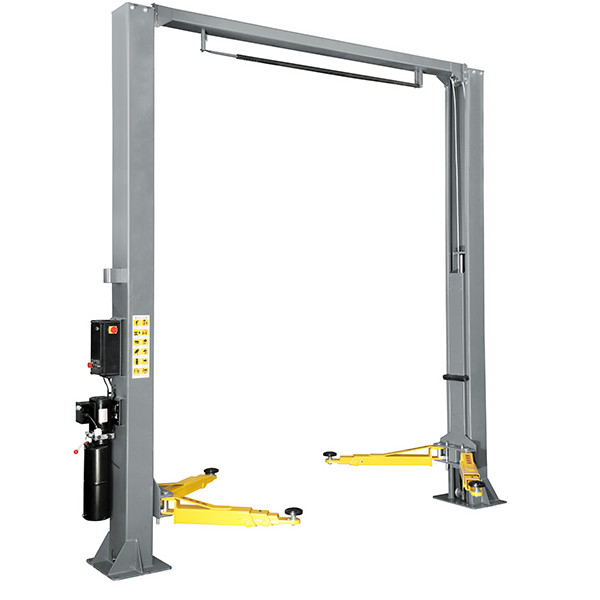

Asymmetric Arms 2 Post Car Lift Cylinder Directly Drived
Product Specifications
Color Options Red/Blue/Yellow/Grey
Voltage 220V/380V/As your request
Volume 1.5 cbm
Release System Single point manual release
Payment Terms EXW/FOB/CIF
Lifting Capacity 9900lbs
Key Features
  • Clear floor design for convenient vehicle service access
  • Single-sided manual safety lock release system (electrical release optional)
  • Premium Japanese and American oil seals for optimal cylinder performance
  • Asymmetric arms design provides more workspace within 3000mm width
  • Reliable cast-iron cover motor (aluminum cover motor available as option)
  • Multi-voltage power supply options available at no additional cost
Technical Specifications
Lifting Capacity 9918Lbs/4500kg
Lifting Height 77"/1945mm
Lifting Time 50 seconds
Overall Height 155"/3924mm
Overall Width 142"/3624mm
Width between Columns 118"/3000mm
Motor Voltage 220V/380V
Frequency 50Hz or 60Hz
Phase 1Ph/3Ph
Net Weight 1587Lbs/720kg
Product Details
Asymmetric Arms 2 Post Car Lift Cylinder Directly Drived 0
3+2 section arms
Asymmetric Arms 2 Post Car Lift Cylinder Directly Drived 1

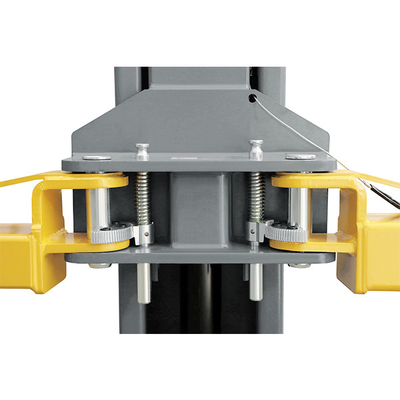

Single point safety lock
Asymmetric Arms 2 Post Car Lift Cylinder Directly Drived 2
Optional heightening sleeve
Asymmetric Arms 2 Post Car Lift Cylinder Directly Drived 3

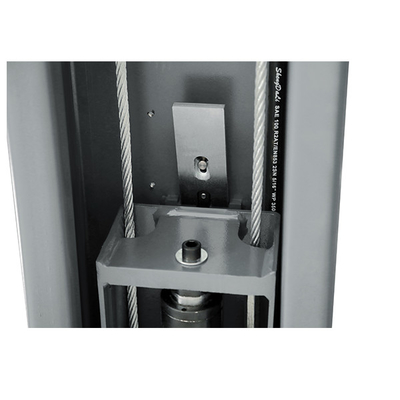

Safety lock system
