Heavy Duty C9370C Brake Disc Drum Lathe 48mm Thickness For Workshops

Name: Heavy Duty C9370C Brake Disc Drum Lathe 48mm Thickness For Workshops
Brand: Guangzhou Eitel Technology Co., Ltd.
SKU: C9370C
Price: 1,250.00 USD
Availability: InStock

Brand Name:	Iter
Model Number:	C9370C
MOQ:	1 set
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000 sets/ month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Color:

Blue/red

Spindle Speed:

70, 80, 120 Rpm

Drum Capacity Diameter:

6" - 28" /710mm

Drum Depth:

9.8" (251mm)

Max. Rotor Diameter:

22"/559mm

Max. Cutting Depth:

0.5mm

Packaging Details:

plywood boxes

Supply Ability:

1000 sets/ month

Highlight:

C9370C Brake Disc Drum Lathe

Workshops Brake Disc Drum Lathe

48mm Brake Disc Drum Lathe

Product Description

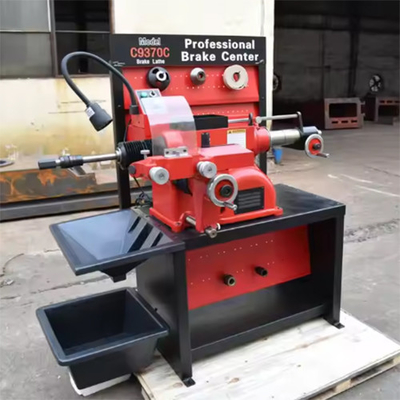

Heavy-Duty C9370C Brake Disc/Drum Lathe for Professional Workshops Machine

Features:

1. It can fulfil the reparation of the brake drum,disc and shoe of auto-mobiles from mini-car to medium trucks.
2. The unusual feature of this equipment is its perpendicular twin- spindle structure.
3. The brake drum /shoe can be cut on the first spindle and the brake disc can be cut on the second spindle.
4. This equipment has higher rigidity,accurate work piece positioning and is easy to operate.

5. The perpendicular twin-spindle system helps reduce setup times and increases productivity by allowing users to work on multiple components simultaneously.

6. Brake drums can be cut on the first spindle while brake discs are processed on the second, allowing for optimized use of time and resources.

Technical data

Model	C9370C
Brake disc diameter	178-457mm
Brake disc thickness	48mm
Brake drum diameter	152-711mm
Brake drum depth	220mm
Spindle speed rpm	70,88,118
Feeding capacity	0-0.4mm/r
Motor power	0.75kw
Gross weight	340KG
Package	128011001445mm

Heavy Duty C9370C Brake Disc Drum Lathe 48mm Thickness For Workshops 0

Standard parts Optional parts
