T8018C High Precision Cylinder Boring Machine For Heavy Vehicles

T8018C High Precision Cylinder Boring Machine For Heavy Vehicles

Brand Name: Iter
Model Number: T8018C
MOQ: 1 set
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000 sets/ month
Detail Information
Place of Origin:
China
Certification:
CE
Color:
Blue/red
Processing Diameter:
1.2"-72"/30-180 Mm
Max Boring Depth:
26"/650 Mm
Spindle Speed:
175/230/300/350/460/600 Mm
Warranty:
1 Year
Power:
4kw/3.3kw
Packaging Details:
plywood boxes
Supply Ability:
1000 sets/ month
Highlight:

High Precision Cylinder Boring Machine

,

T8018C Cylinder Boring Machine

,

Heavy Vehicles Cylinder Boring Machine

Product Description
T8018C High Precision Cylinder Boring Machine For Heavy Vehicles
Product Specifications
Attribute Value
Color Blue/Red
Processing Diameter 1.2"-72"/30-180 mm
Max Boring Depth 26"/650 mm
Spindle Speed 175/230/300/350/460/600 mm
Warranty 1 Year
Power 4kw/3.3kw
Product Description

The T8018C Cylinder Boring Machine is a high-performance tool designed for precision engine cylinder boring and machining, ideal for a wide range of vehicle types.

  • Precision Cylinder Boring: Offers high-precision boring capabilities, ensuring smooth and accurate cylinder sizes for various engine blocks. Guarantees exact bore alignment critical for restoring engine performance and longevity.
  • Heavy-Duty Construction: Built with robust materials featuring a stable frame that minimizes vibrations during operation, ensuring consistent high-performance for long-term use in demanding repair shop environments.
  • Wide Range of Cylinder Sizes: Accommodates various cylinder sizes from small automotive to larger industrial/commercial vehicle engines with its adjustable table and versatile clamping system.
  • Adjustable Speed Control: Multiple speed settings allow operators to fine-tune boring speed for optimal performance during both rough boring and fine finishing operations.
Technical Specifications
Model T8018C
Processing Diameter 30-180mm
Max Boring Depth 26"/650mm
Spindle Speed 175/230/300/350/460/600mm
Rapid Moving Speed of the Spindle 2800mm/min
Distance Between Spindle End Face and Table 0-800
Longitudinal Feed of Worktable 95mm/153mm
Rapid Moving Speed of the Table Longitudinal Travel 1150mm
Max Longitudinal Travel of the Working Table 1500mm
Max Cross Travel of the Working Table 150mm
Working Table Size 1680*450mm
Main Motor 3.3/4kw
Overall Dimensions 2680*1500*2325mm
Packing Dimensions 1550*1880*2490mm
Net Weight/Gross Weight 3500/2600kg
Product Images

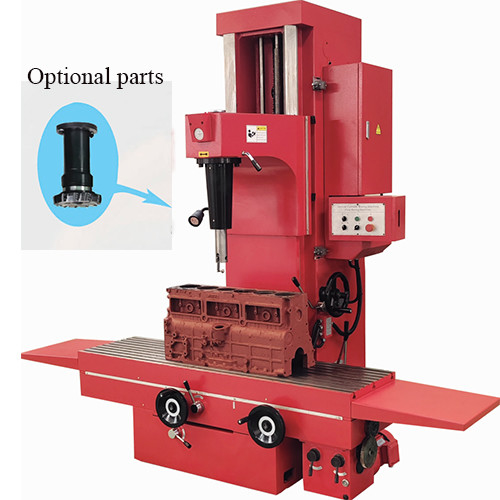

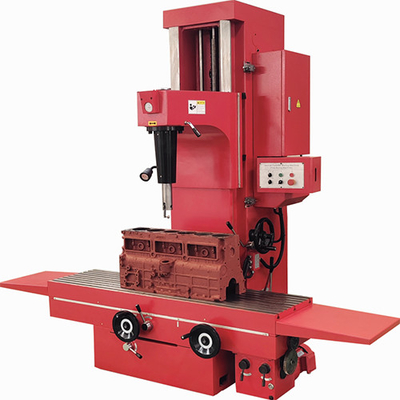

T8018C High Precision Cylinder Boring Machine For Heavy Vehicles 0 T8018C High Precision Cylinder Boring Machine For Heavy Vehicles 1
