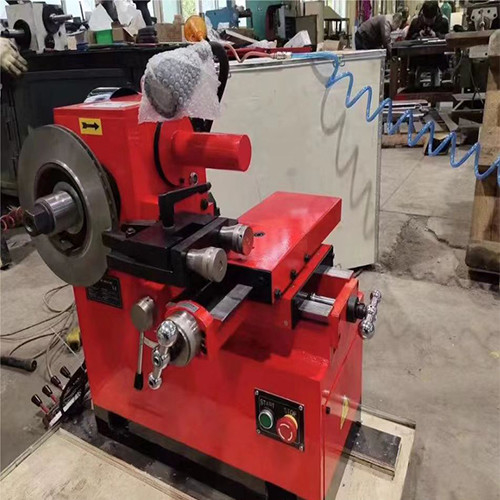

C9335A Brake Rotor Lathe 1.1kw/0.75kw For Automotive Maintenance

C9335A Brake Rotor Lathe 1.1kw/0.75kw For Automotive Maintenance

Brand Name: Iter
Model Number: C9335A
MOQ: 1set
Payment Terms: T/T,Western Union
Supply Ability: 1000 sets/month
Detail Information
Place of Origin:
China
Certification:
CE
Color:
Blue Or Red
Voltage:
220V/380v/110v As Your Request
Rotating Speed:
75-130 R/min
Max Travel Of Tools:
100mm
Feeding Capacity:
0.16mm/r
Power:
1.1kw/0.75kw
Packaging Details:
plywood box, 830*620*840mm
Supply Ability:
1000 sets/month
Highlight:

C9335A Brake Rotor Lathe

,

Automotive Maintenance Brake Rotor Lathe

,

Brake Rotor Lathe 1.1kw

Product Description
C9335A Brake Rotor Lathe 1.1kw/0.75kw For Automotive Maintenance
Product Specifications
Attribute Value
Color Blue or Red
Voltage 220V/380V/110V (as requested)
Rotating Speed 75-130 r/min
Max Travel of Tools 100mm
Feeding Capacity 0.16mm/r
Power 1.1kw/0.75kw
Product Description
Advanced C9335A Brake Rotor Lathe for Automotive Maintenance
Key Features
  • Integrated coolant delivery system minimizes heat build-up, ensuring consistent performance and prolonging tool life
  • Intuitive controls and clear digital readouts make operation simple for both novice and experienced technicians
  • Equipped with safety interlocks, emergency stop buttons, and protective guards to ensure safe operation
  • Automatic calibration system maintains machining accuracy over long production runs
  • Engineered for low power consumption without compromising performance, reducing operational costs
  • Provides a smooth finish on brake discs with minimal material removal, extending the life of the rotor
Technical Data
Model G9335A
Brake Drum 180-350mm
Brake Disc 180-350mm
Rotating Speed of Work-pieces 75-130 r/min
Max Travel of Tools 100mm
Feeding Capacity 0.16mm/r
Motor Power 1.1/0.75kw
Weight 205kg (N.W)/220kg (G.W)
Package 830*620*840mm
Standard Parts
