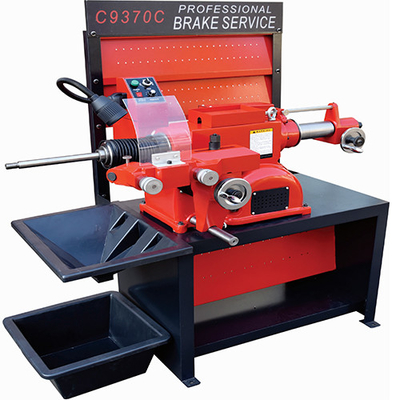

C9370C Brake Disc Drum Repair Cutting Lathe on Car Brake Cutting Lathe Brake Disc Skimming Machine

Name: C9370C Brake Disc Drum Repair Cutting Lathe on Car Brake Cutting Lathe Brake Disc Skimming Machine
Brand: Guangzhou Eitel Technology Co., Ltd.
SKU: C9370C
Price: 1,250.00 USD
Availability: InStock

Brand Name:	Iter
Model Number:	C9370C
MOQ:	1 set
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000 sets/ month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Color:

Blue/red

Spindle Speed:

70, 80, 120 Rpm

Drum Capacity Diameter:

6" - 28" /710mm

Drum Depth:

9.8" (251mm)

Max. Rotor Diameter:

22"/559mm

Max. Cutting Depth:

0.5mm

Packaging Details:

plywood boxes

Supply Ability:

1000 sets/ month

Highlight:

Brake Disc Drum Repair Cutting Lathe

C9370C Brake Disc Lathe

Brake Disc Skimming Machine

Product Description

C9370C Brake Disc Drum Repair Cutting Lathe

Product Specifications

Attribute	Value
Color	blue/red
Spindle Speed	70, 80, 120 rpm
Drum Capacity diameter	6" - 28" /710mm
Drum Depth	9.8" (251mm)
Max. rotor diameter	22"/559mm
Max. cutting depth	0.5mm

Product Features

Can fulfill the reparation of the brake drum, disc and shoe of automobiles from mini-car to medium trucks.
Features a perpendicular twin-spindle structure for versatile operation.
Brake drum/shoe can be cut on the first spindle while brake discs are processed on the second spindle.
Higher rigidity and accurate workpiece positioning for precision operations.
User-friendly design makes operation simple and efficient.
Perpendicular twin-spindle system reduces setup times and increases productivity.
Allows simultaneous processing of different components for optimized workflow.
