X6 High Performance 3D Car Wheel Alignment System for Precision Mechanics

X6 High-Performance 3D Car Wheel Alignment System for Precision Mechanics

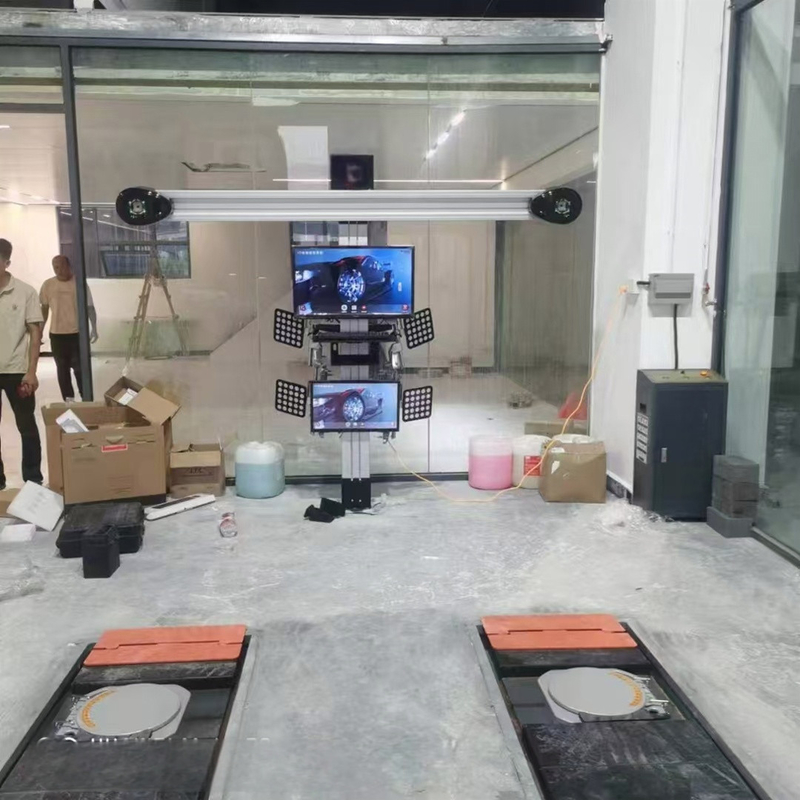

Double screens

Features:

1. Fast,Easy,Accurate Reliable
   3D Wheel alignment,a Computer vision measuring system,developed on the base of complex mathematical model.
    Non electronic sensor,non battery,non wire connection
   Need not periodicalre-calibration
   Eliminate electrical problem,and always keep accuracy
   Generate more alignment business
   Four major features
   1. Is there location requirements on Vehicles parking on the platform?
   Based on 3D image technology, there is no strict restrictions on the vehicle’s parking location.
   Neither coordinate with the central line of the platform, nor symmetrical needed, you can get repeatable good measurement to meet the normal tuning effect.

   2. How about the platform is not level ?
   After calibration the 3D system is capable of correcting the measurement error caused by uneven of the runways. Even the uneven reached 100mm, can still get the correct measurements.

   3. How to solve the problem of skew steer wheel?
   The advanced 3D alignment system is equipped a button to correct a skew steer wheel.

   4. Patented measure technology
   We have a patent target to get precise toe and camber of the rolling Tire; intelligent recognition module to ensure stable measurement.

SPECIFICATIONS
* Wheel size: 13’-24’
* Track width: 1200- 1800 mm;
* Wheel Base: 2000-3200 mm;
* Baseline Distance: 2300-2700 mm
(From Camera Beam to Turn-table center)
* Camera Offset Height: 450-800 mm
(From Target center to Camera)
* Camera Beam Height: 1700-2100 mm
* Camera Beam Length: 2600
* Support Column Height: 2200 mm
* Power reuirements : 110/220v, 1ph, 60Hz
* Monitor: 22’LCD
* Operation System: Windows 7/windows8
* Printer: AOC Color Ink Jet

Details
