X6 3D Car Wheel Aligner Machine For Automotive Shop

X6 3D Car Wheel Aligner Machine For Automotive Shop

Brand Name: Iter
Model Number: X6
MOQ: 1set
Payment Terms: T/T,Western Union
Supply Ability: 1000 sets/month
Detail Information
Place of Origin:
Guangzhou,China
Certification:
CE
Optional:
Screen
Packaging Details:
plywood box
Supply Ability:
1000 sets/month
Highlight:

3D Wheel Aligner Machine

,

Automotive Shop Wheel Aligner

,

X6 Car Wheel Aligner

Product Description

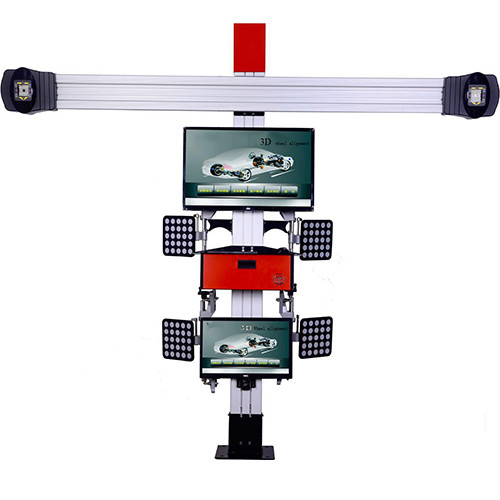

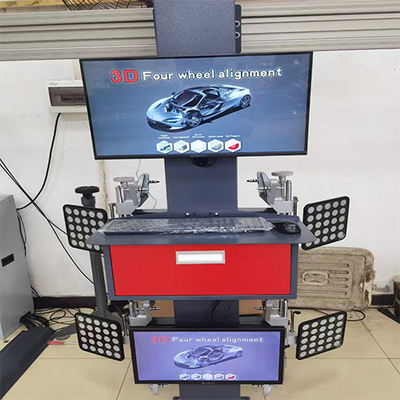

X6 3D Car Wheel Aligner Machine For Automotive Shop
Advanced 3D Wheel Alignment Solution

The X6 3D wheel alignment machine is a cutting-edge computer vision measuring system developed using complex mathematical models. This innovative solution offers automotive shops fast, easy, and accurate wheel alignment with double-screen operation.

Key Advantages
  • No electronic sensors, batteries, or wire connections required
  • Eliminates periodic re-calibration needs
  • Maintains consistent accuracy by avoiding electrical problems
  • Helps generate more alignment business with reliable performance
Vehicle Positioning Flexibility

Using advanced 3D imaging technology, the X6 system has no strict vehicle positioning requirements. Vehicles don't need to be centered or symmetrically aligned on the platform to achieve repeatable, accurate measurements for optimal tuning results.

Technical Specifications
Wheel size: 13'-24'
Track width: 1200-1800 mm
Wheel Base: 2000-3200 mm
Baseline Distance: 2300-2700 mm (From Camera Beam to Turn-table center)
Camera Offset Height: 450-800 mm (From Target center to Camera)
Camera Beam Height: 1700-2100 mm
Camera Beam Length: 2600 mm
Support Column Height: 2200 mm
Power requirements: 110/220v, 1ph, 60Hz
Monitor: 22" LCD
Operation System: Windows 7/Windows 8
Printer: AOC Color Ink Jet
