X6 Fully Automatic 3D Wheel Aligner With Touchscreen Control

X6 Fully Automatic 3D Wheel Aligner With Touchscreen Control

Brand Name:	Iter
Model Number:	X6
MOQ:	1set
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	500 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou,China

Certification:

Screen:

Double

Wheel Size:

13"-24"

Track Width:

1200-1800mm

Wheel Base:

2000-3200mm

Baseline Distance:

2300-2700mm

Support Columun Height:

2200mm

Packaging Details:

plywood box

Supply Ability:

500 sets/month

Highlight:

Touchscreen Control 3D Wheel Aligner

Automatic 3D Wheel Aligner

X6 3D Wheel Aligner

Product Description

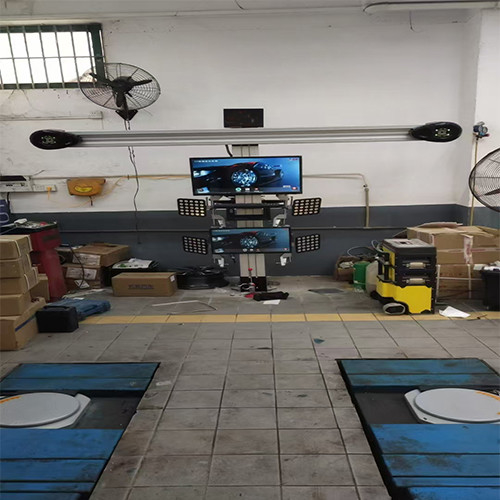

X6 Fully Automatic 3D Wheel Alignment Machine With Touchscreen Control

Double screens

Features:

High-Precision 3D Imaging Advanced 3D camera system delivers precise tracking of wheel angles in real time.
Advanced Sensor Technology Precision-based sensor system instantly identifies misalignment issues for quick adjustments.
User-Friendly Interface The system is equipped with a simple touch display for easy, intuitive controls.
Automatic Calibration Self-tuning system ensures accurate alignment without manual calibration.
Comprehensive Vehicle Coverage This alignment system works with a broad variety of vehicles, from compact cars to large commercial fleets.
Fast Measurement Process Instant measurement results speed up the alignment process, reducing downtime.
360-Degree Wheel Tracking Complete wheel rotation tracking ensures precise alignment from every angle.

SPECIFICATIONS
* Wheel size: 13’-24’
* Track width: 1200- 1800 mm;
* Wheel Base: 2000-3200 mm;
* Baseline Distance: 2300-2700 mm
(From Camera Beam to Turn-table center)
* Camera Offset Height: 450-800 mm
(From Target center to Camera)
* Camera Beam Height: 1700-2100 mm
* Camera Beam Length: 2600
* Support Column Height: 2200 mm
* Power reuirements : 110/220v, 1ph, 60Hz
* Monitor: 22’LCD
* Operation System: Windows 7/windows8
* Printer: AOC Color Ink Jet

Details
