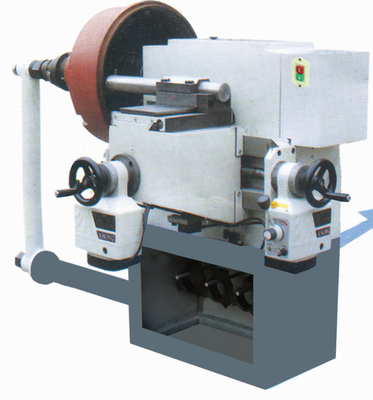

C9365 Brake lathe equipment for the bus and truck disc or drum with different sizes choose

C9365 Brake lathe equipment for the bus and truck disc or drum with different sizes choose

Brand Name: Iter
Model Number: C9365
MOQ: 1 set
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000 sets/ month
Detail Information
Place of Origin:
China
Certification:
CE
Color:
Blue/red
Rotating Speed Of Work-pieces:
30/49/88 R/min
Brake Disc Diameter:
14" - 26" /350-650 Mm
Max Travel Of Tool:
256 Mm/10.6"
Warranty:
1 Year
Package:
1 Plywood Box
Packaging Details:
plywood boxes
Supply Ability:
1000 sets/ month
Highlight:

bus brake lathe

,

bus brake disc lathe

,

truck brake lathe

Product Description
C9365 Brake Lathe Equipment for Bus and Truck Disc or Drum Resurfacing
Product Overview

The C9365 Brake Disc and Drum Machine is designed specifically for the repair and resurfacing of large and medium vehicle brake drums and discs, accommodating various sizes for commercial vehicles.

Key Specifications
Attribute Value
Color Options Blue/Red
Rotating Speed 30/49/88 r/min
Brake Disc Diameter 14" - 26" (350-650 mm)
Max Travel of Tool 256 mm (10.6")
Warranty 1 Year
Package 1 Plywood Box
Advanced Features
  • Powerful electric power feed system with infinitely variable feeding in both directions for high-efficiency operation
  • Special support system enhances stability when turning heavy brake drums for accurate cutting
  • Dual-face turning capability for simultaneous processing of both sides of brake discs
  • Precision control for both rough turning and fine finishing operations
  • Ideal for high-volume repair shops handling commercial and off-road vehicles
Technical Specifications
Model C9365
Brake Disc Diameter 350-650mm
Brake Drum Diameter 180-480mm
Rotating Speed 30/49/88 r/min
Max Travel of Tool 256mm (10.6")
Motor Power 1.1kw
Gross Weight 580KG/540
Package Size 1120*970*1100mm
