Brake Lathe
Created with Pixso.

High Torque T8470 Brake Disc Machine 1.5kw For Powerful Grinding

High Torque T8470 Brake Disc Machine 1.5kw For Powerful Grinding

Brand Name: Iter
Model Number: T8470
MOQ: 1 set
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000 sets/ month
Detail Information
Place of Origin:
China
Certification:
CE
Color:
Blue/red
Rotating Speed Of Work-pieces:
30/54/80 R/min
Brake Drum Diameter:
8.8" -28" /220-700mm
Max Travel Of Tools:
12"/300mm
Feeding Capacity:
Variable
Warranty:
1 Year
Packaging Details:
plywood boxes
Supply Ability:
1000 sets/ month
Highlight:

T8470 Brake Disc Machine

,

1.5kw Brake Disc Machine

,

Grinding Brake Disc Machine

Product Description

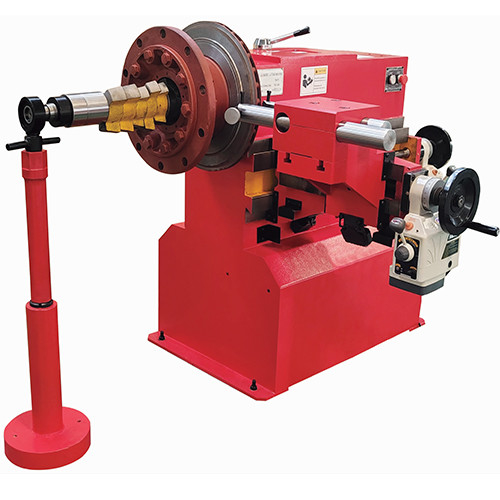

High Torque T8470 Brake Disc Machine 1.5kw For Powerful Grinding
Key Specifications
Color Options Blue/Red
Rotating Speed 30/54/80 r/min
Brake Drum Diameter 8.8" - 28" (220-700mm)
Max Tool Travel 12" (300mm)
Feeding Capacity Variable
Warranty 1 Year
Professional Brake Disc Machining Solution

The High-Torque T8470 Brake Disc Machine delivers powerful grinding performance for maximum efficiency in brake system maintenance and repair.

Advanced Features
  • Versatile application for repairing brake discs of all vehicle sizes and large/medium brake drums
  • Bi-directional feeding capability enhances operational efficiency
  • Precision adjustable turning depth with auto-stop function
  • Compatible with multiple models, handling brake drums up to 700mm diameter
  • Specialized support system ensures stability when turning heavy drums
  • Simultaneous dual-face brake disc turning capability
Technical Specifications
Model T8470
Brake Drum Capacity 220-700mm
Brake Disc Capacity ≤550mm
Workpiece Rotation Speed 30/54/80 r/min
Maximum Tool Travel 300mm
Motor Power 1.5kw
Gross Weight 600KG
Package Dimensions 1100×905×1172mm
