DC Motors Brake Lathe C9350C For 480mm Thickness Brake Disc Skimming

DC Motors Brake Lathe C9350C For 480mm Thickness Brake Disc Skimming

Brand Name: Iter
Model Number: C9350C
MOQ: 1 set
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000sets/month
Detail Information
Place of Origin:
China
Certification:
CE
Color:
Red/blue
Voltage:
220V/380V/as Your Request
Spindle Speed Rpm:
70,88,118
Machinery Test Report:
Provided
Rotor Thichness:
1.875"/480mm
Gross Weight:
330kg
Packaging Details:
export standard, plywood boxes
Supply Ability:
1000sets/month
Highlight:

DC Motors Brake Lathe

,

C9350C Brake Lathe

,

480mm Brake Disc Skimming Lathe

Product Description
DC Motors Brake Lathe C9350C For 480mm Thickness Brake Disc Skimming
Product Specifications
Color Red/Blue
Voltage 220V/380V/as your request
Spindle Speed RPM 70, 88, 118
Machinery Test Report Provided
Rotor Thickness 1.875"/480mm
Gross Weight 330kg
Product Description

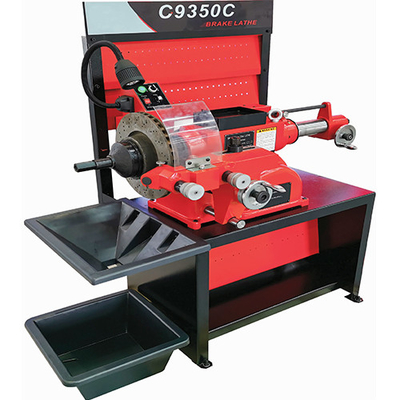

The Brake Lathe C9350C is a professional-grade disc and drum cutting machine designed for precision brake disc skimming in industrial applications.

Key Features
  • DC motors built to handle the tough demands of industrial motion regulation
  • Innovative "Change Adapter" system eliminates the need for traditional bell clamps and cones
  • Precision twin cutters and fast drum-to-rotor switch enhance service capabilities
  • Infinitely adjustable spindle and cross feed speeds for both fast rough cuts and precise finishing
  • Positive rake cutter angle ensures flawless one-pass finish for increased efficiency
Technical Specifications
Model C9350C
Brake Disc Diameter 178-368mm
Brake Disc Thickness 480mm
Brake Drum Diameter 152-450mm
Brake Drum Depth 160mm
Spindle Speed RPM 70, 88, 118
Cross/Spindle Feeding Capacity 0-0.4mm/r
Motor Power 0.75kw
Gross Weight 330KG
Package Size 1200×900×1500mm
