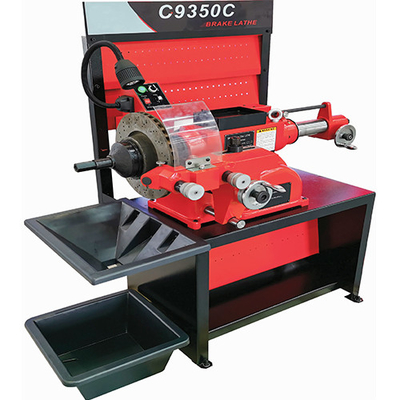

C9350C Brake Lathe Brake Disc Skimming Machine 0.75kw For Disc And Drum Cutting

C9350C Brake Lathe Brake Disc Skimming Machine 0.75kw For Disc And Drum Cutting

Brand Name: Iter
Model Number: C9350C
MOQ: 1 set
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000sets/month
Detail Information
Place of Origin:
China
Certification:
CE
Color:
Red/blue
Voltage:
220V/380V/as Your Request
Spindle Speed Rpm:
70,88,118
Machinery Test Report:
Provided
Rotor Thichness:
1.875"/480mm
Gross Weight:
330kg
Packaging Details:
export standard, plywood boxes
Supply Ability:
1000sets/month
Highlight:

C9350C Brake Lathe

,

Brake Disc Skimming Machine 0.75kw

,

Drum Cutting Brake Lathe

Product Description
C9350C Brake Lathe Brake Disc Skimming Machine 0.75kw For Disc And Drum Cutting
Product Specifications
Color Red/Blue
Voltage 220V/380V/as your request
Spindle speed rpm 70,88,118
Machinery test report Provided
Rotor thickness 1.875"/480mm
Gross weight 330kg
Product Description

The C9350C Brake Lathe is a professional-grade brake disc skimming machine designed for both disc and drum cutting applications. This robust machine features:

  • DC motors engineered for demanding industrial motion control requirements
  • Innovative "Change Adapter" system that eliminates the need for conventional bell clamps and cones
  • Precision twin cutter tools with quick drum-to-rotor changeover capability to enhance service efficiency
  • Infinitely variable spindle and cross feed speed settings for both rough cuts and precision finishing
  • Positive rake cutter tip angle that delivers one-pass finishes in most applications, significantly reducing work time
Technical Data
Model C9350C
Brake disc diameter 178-368mm
Brake disc thickness 480mm
Brake drum diameter 152-450mm
Brake drum depth 160mm
Spindle speed rpm 70,88,118
Cross/Spindle Feeding capacity 0-0.4mm/r
Motor power 0.75kw
Gross weight 330KG
Package 1200*900*1500mm
