Battery Changing Lifting Platform 2200lbs 1000kg Capacity For Electrical Vehicle

Brand Name:	Iter
Model Number:	T1.0A-C
MOQ:	1set
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

Color:

Green/red/blue/yellow/grey

Voltage:

220v/110V/as Your Request

Lifting Capacity:

2200lbs

Overall Width:

34"/840mm

Min Height:

46"/1145mm

Payment Terms:

EXW/FOB/CIF

Packaging Details:

export standard,steel frame and carton

Supply Ability:

1000sets/month

Highlight:

Battery Changing Lifting Platform

Electrical Vehicle Battery Lifting Platform

2200lbs Lifting Platform

Product Description

Lifting platform for battery changing of Electrical vehicle 2200lbs 1000kg

Features:

Specifically built for new energy vehicles, this lift is ideal for servicing engines and transmissions.

It features an automated mechanical safety mechanism and a single-shear structure for stable and seamless elevation.

Available with either an electric or pneumatic hydraulic system as an optional configuration.

The platform is designed with a gridded surface and insulating material, making it easy to maneuver and securely hold the new energy vehicle’s battery pack.

The table platform incorporates a universal sliding function with a manual locking mechanism, ensuring precise alignment.

Capable of tilting between 0-4 degrees forward and backward, it enables optimal positioning with the vehicle.

Its universal self-locking wheels enhance mobility, making operations quicker and more efficient.

Equipped with a 12V electric control module that includes a built-in battery, eliminating the need for an external power source.

The hydraulic system includes an explosion-proof safety feature, ensuring dependable and secure performance.

Technical data

Lifting Capacity	2200Lbs/1000kg
Lifting Height	70"/1740mm
Lifting Time	25seconds
Min Height	46"/1145mm
Overall Width	34”/840mm
Overall Length	54”/1370mm
Motor Voltage	220V/380V
Frequency	50Hz or 60Hz
Phase	1Ph/3Ph
Net Weight	1005Lbs/457kg

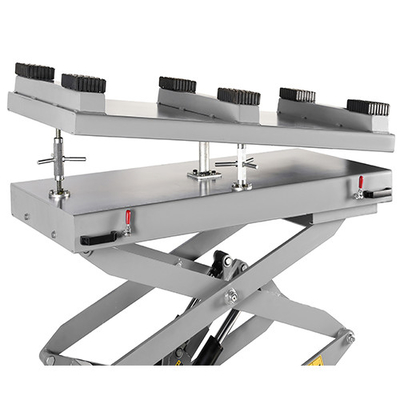

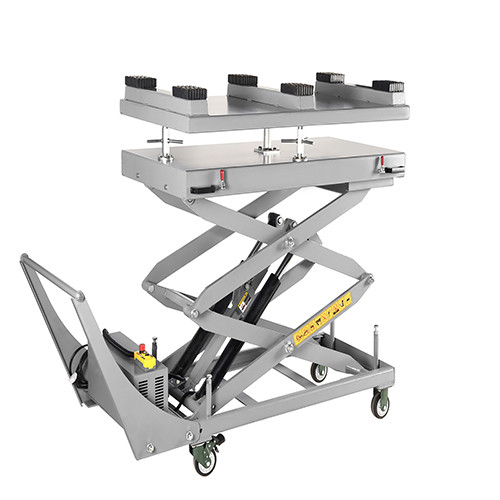

Battery Changing Lifting Platform 2200lbs 1000kg Capacity For Electrical Vehicle 0

Battery Changing Lifting Platform 2200lbs 1000kg Capacity For Electrical Vehicle 1

Battery Changing Lifting Platform 2200lbs 1000kg Capacity For Electrical Vehicle 2

adjustable device control system
