EV Battery Lift
Created with Pixso.

New Energy EV Battery Lift Platform Vehicle Scissor Lift 1000Kg 2200lbs

New Energy EV Battery Lift Platform Vehicle Scissor Lift 1000Kg 2200lbs

Brand Name: Iter
Model Number: TL1.0A
MOQ: 1set
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000set/month
Detail Information
Place of Origin:
Guangdong
Certification:
CE
Color:
Red/blue/yellow/green
Voltage:
220V/110V/as Your Request
Lifting Capacity:
2200lbs/1000kg
Payment Terms:
EXW/FOB/CIF
Lifting Height:
24"/602mm
Lifting Time:
25seconds
Packaging Details:
export standard , steel frame and carton
Supply Ability:
1000set/month
Highlight:

EV Battery Lift Platform

,

EV Battery Lift 2200lbs

,

Vehicle Scissor Lift 1000Kg

Product Description
New Energy EV Battery Lift Platform Vehicle Scissor Lift 1000Kg 2200lbs
Product Specifications
Color:
red/blue/yellow/green
Voltage:
220V/110V/as your request
Lifting Capacity:
2200lbs/1000kg
Payment Terms:
EXW/FOB/CIF
Lifting Height:
24"/602mm
Lifting Time:
25seconds
Product Features
  • Designed specifically for new energy vehicle maintenance, including engine and gearbox servicing

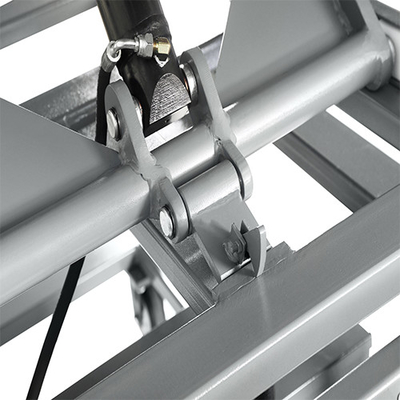

  • Features automatic mechanical safety device with single shear design for smooth lifting operation
  • Available with optional electric or pneumatic hydraulic systems
  • Platform designed with grill and insulation paste for easy movement and battery pack support
  • Universal sliding table platform with manual locking for precise positioning
  • 0-4 degree forward/backward tilt adjustment for optimal vehicle alignment
  • Universal self-locking wheels for faster, more convenient operation

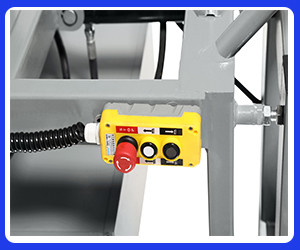

  • 12V electric control box with battery - no external power required
  • Hydraulic system equipped with explosion-proof device for safe, reliable operation
Technical Specifications
Lifting Capacity 2200Lbs/1000kg
Lifting Height 69"/1727mm
Lifting Time 25.5seconds
Min Height 45"/1125mm
Overall Width 38"/946mm
Overall Length 55"/1385mm
Motor Voltage 220V/380V
Frequency 50Hz or 60Hz
Phase 1Ph/3Ph
Net Weight 800Lbs/364kg

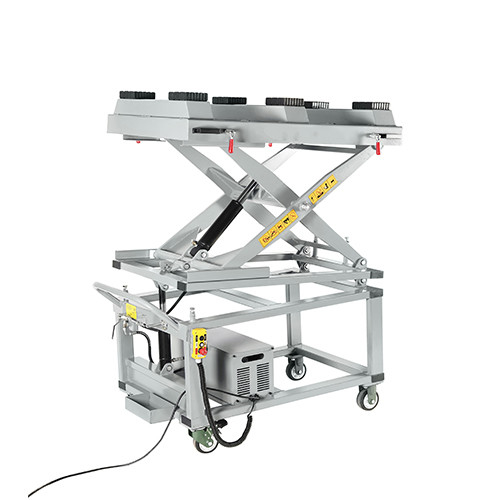

Product Images
New Energy EV Battery Lift Platform Vehicle Scissor Lift 1000Kg 2200lbs 0 New Energy EV Battery Lift Platform Vehicle Scissor Lift 1000Kg 2200lbs 1 New Energy EV Battery Lift Platform Vehicle Scissor Lift 1000Kg 2200lbs 2 New Energy EV Battery Lift Platform Vehicle Scissor Lift 1000Kg 2200lbs 3
