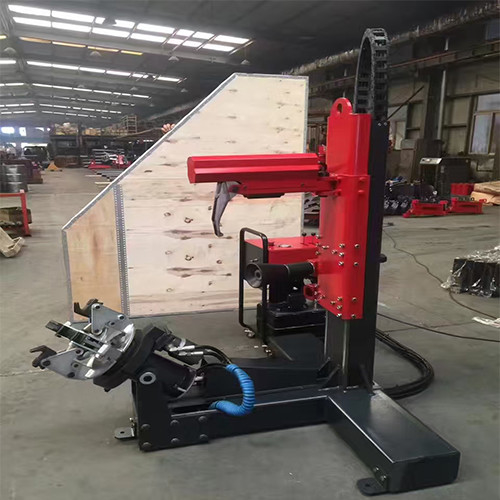

Truck Bus And Tractor Tire Changer With Movable Control Handle

Truck Bus And Tractor Tire Changer With Movable Control Handle

Brand Name: Iter
Model Number: XT-268
MOQ: 1set
Payment Terms: T/T,Western Union
Supply Ability: 1000 sets/month
Detail Information
Place of Origin:
China
Certification:
CE
Color:
Blue,red Or Grey
Rim Clamping Outside:
19"-26"
Max. Wheel Weight:
380kg
Max. Wheel Width:
470mm
Max. Tire Diamter:
1400mm
Operation Control Voltage:
220V/415V/380V
Packaging Details:
carton and plywood box
Supply Ability:
1000 sets/month
Highlight:

Tractor Tire Changer

,

Movable Control Handle Tire Changer

,

Bus Tire Changer

Product Description
Truck Bus And Tractor Tire Changer With Movable Control Handle
Key Specifications
Color Options Blue, Red or Grey
Rim Clamping Range 19"-26"
Max. Wheel Weight 380kg
Max. Wheel Width 470mm
Max. Tire Diameter 1400mm
Operation Voltage 220V/415V/380V
Professional Tire Changing Solution for Heavy-Duty Vehicles

This advanced tire changer is engineered for efficient service of truck, bus, and tractor tires, featuring an ergonomic movable control handle for precise operation.

Premium Features
  • Ergonomic movable control handle operates at low pressure for precise adjustments during tire mounting/demounting, enhancing both safety and operator comfort
  • 24V electrical system ensures stable, safe operation with reduced risk of electrical malfunctions

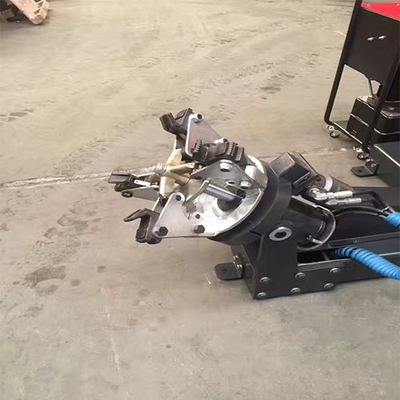

  • Universal assembly arm with swinging disc and coordinated hook handles rims from 14" to 26" for versatile operation
  • Hydraulic lift hips and clamps provide smooth, secure handling of all rim sizes
  • Optional high-performance Italian pump available for enhanced hydraulic efficiency and reliability
Technical Specifications
Model XT-268
Rim Diameter Range 19"-26"
Max. Wheel Weight 380KG
Max. Wheel Width 470mm
Max. Tire Diameter 1400mm
Hydraulic Pump Motor 3.3kw 380V-3Ph (220V Optional)
Gearbox Motor 2.2kw 380v-3ph (220v optional)
Max. Torque 5265N.M
Gross Weight 560kg
Package Size 1300*1220*1720mm
Voltage Options 220v/415V/380v
