Hydraulic Tyre Mounting And Demounting Machine 24V For Trucks

Hydraulic Tyre Mounting And Demounting Machine 24V For Trucks

Brand Name: Iter
Model Number: XT-26
MOQ: 1set
Payment Terms: T/T,Western Union
Supply Ability: 1000 sets/month
Detail Information
Place of Origin:
China
Certification:
CE
Color:
Blue,red Or Grey
Rim Clamping Outside:
14"-56"
Max. Wheel Weight:
2000kg
Max. Wheel Width:
1200mm
Max. Tire Diamter:
2500mm
Operation Control Voltage:
24V
Packaging Details:
carton and plywood box
Supply Ability:
1000 sets/month
Highlight:

Tyre Mounting And Demounting Machine 24V

,

Trucks Tyre Mounting And Demounting Machine

,

Hydraulic Tyre Mounting Machine

Product Description
Hydraulic Tyre Mounting And Demounting Machine 24V For Trucks
Product Specifications
Attribute Value
Color options Blue, red or grey
Rim clamping range 14"-56"
Max. wheel weight 2000kg
Max. wheel width 1200mm
Max. tire diameter 2500mm
Operation control voltage 24V
Product Description

This professional-grade hydraulic tyre mounting and demounting machine is specifically designed for truck service applications, offering exceptional performance and safety features for demanding work environments.

Key Features
  • Versatile control handle: Equipped with a movable low-pressure control handle for precise pressure adjustment during mounting and demounting operations.
  • 24V safety system: Powered by a stable 24V electrical system designed to prevent electrical hazards while ensuring consistent operation.
  • Universal assembly arm: Features both a swinging assembly disc and hook to accommodate wheel sizes from 14" to 26" with precision.
  • Hydraulic drive system: Provides smooth operation for lift hips and clamps, handling all rim sizes with secure positioning.
  • Optional Italian pump: Upgrade available with a high-performance Italian pump for superior pressure control and operation.
Technical Data
Model XT-42
Rim diameter 14"-42"
Max. wheel weight 1600KG
Max. wheel width 1050mm
Max. tyre diameter 2300mm
Hydraulic pump motor 1.5kw | 2.2kw 380V-3Ph (220V Optional)
Gearbox motor 2.2kw 380v-3ph (220v optional)
Bead breaker force 3300kg
Operation control voltage 24V
Max. Torque 5265N.M
Weight 758kg
Package size 2500*2000mm
Voltage options 220v/420V/380v

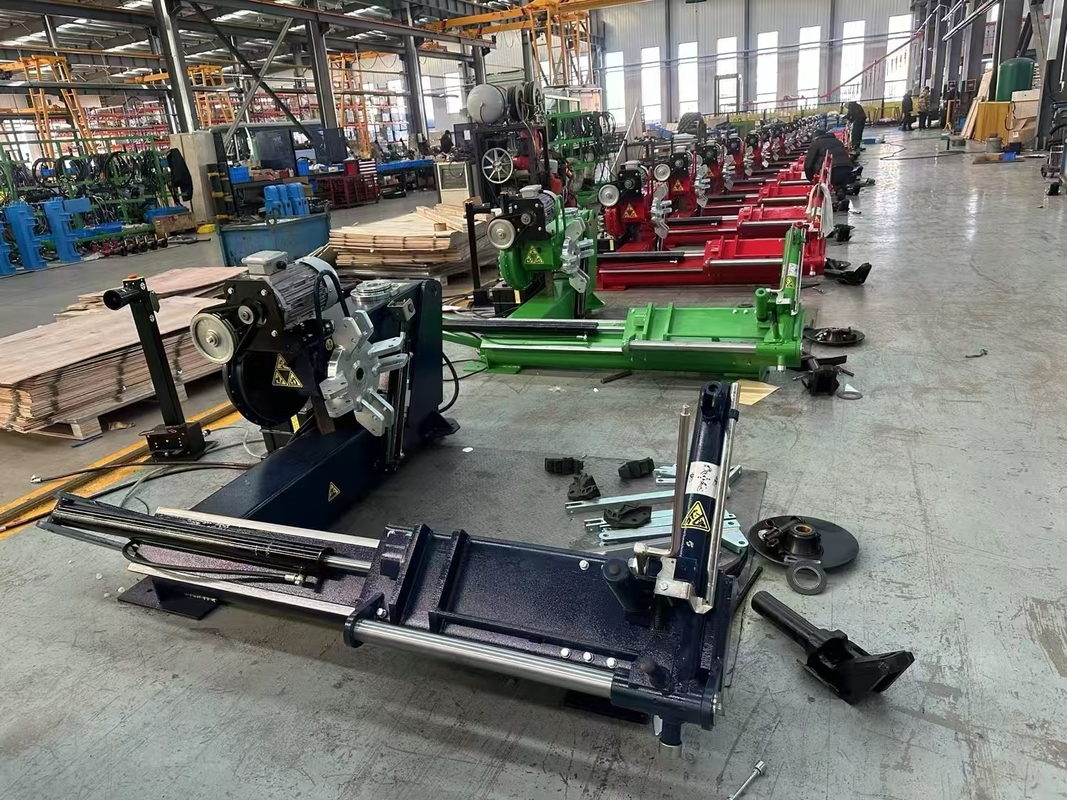

Product Images
