Heavy Duty Large Vehicle Tire Changer 24V For Workshop

Heavy Duty Large Vehicle Tire Changer 24V For Workshop

Brand Name: Iter
Model Number: XT-56
MOQ: 1set
Payment Terms: T/T,Western Union
Supply Ability: 1000 sets/month
Detail Information
Place of Origin:
China
Certification:
CE
Color:
Blue,red Or Grey
Rim Clamping Outside:
14"-26"
Max. Wheel Weight:
500kg
Max. Wheel Width:
780mm
Max. Tire Diamter:
1600mm
Operation Control Voltage:
24V
Packaging Details:
carton and plywood box
Supply Ability:
1000 sets/month
Highlight:

Large Vehicle Tire Changer

,

Tire Changer 24V

,

Workshop Tire Changer

Product Description
Heavy Duty Large Vehicle Tire Changer 24V For Workshop
Key Specifications
Attribute Value
Color Options Blue, Red or Grey
Rim Clamping Range 14"-26"
Max. Wheel Weight 500kg
Max. Wheel Width 780mm
Max. Tire Diameter 1600mm
Operation Control Voltage 24V
Professional Tire Changing Solution for Heavy-Duty Applications

This industrial-grade tire changer is designed for workshop environments requiring reliable performance with large vehicle tires. Its robust construction and advanced features ensure efficient operation for professional automotive service.

Advanced Features
  • Movable low-pressure control handle enables precise pressure regulation during operation, optimizing performance and ensuring operator safety during tire installation and removal.
  • 24V power supply provides stable operation with minimized energy fluctuations, maintaining consistent performance while meeting high safety standards.
  • Universal assembly arm with articulated swinging disc and hook system accommodates wheels from 14" to 26", ensuring secure hold and precise alignment during operations.
  • Hydraulically driven lift hips and clamps provide controlled movement and strong clamping force for rims of any dimension, maintaining stability during tire changes.
  • Optional Italian-made pump upgrade available for enhanced hydraulic performance, offering superior pressure consistency and operational efficiency.
Technical Specifications
Model XT-26
Rim Diameter Range 14"-26"
Max. Wheel Weight 500KG
Max. Wheel Width 780mm
Max. Tire Diameter 1600mm
Hydraulic Pump Motor 1.5kw 380V-3Ph (220V Optional)
Gearbox Motor 2.2kw 380v-3ph (220v optional)
Bead Breaker Force 2500kg
Operation Control Voltage 24V
Max. Torque 6457N.M
Unit Weight 517kg
Package Size 2500*2000mm
Voltage Options 220v/420V/380v

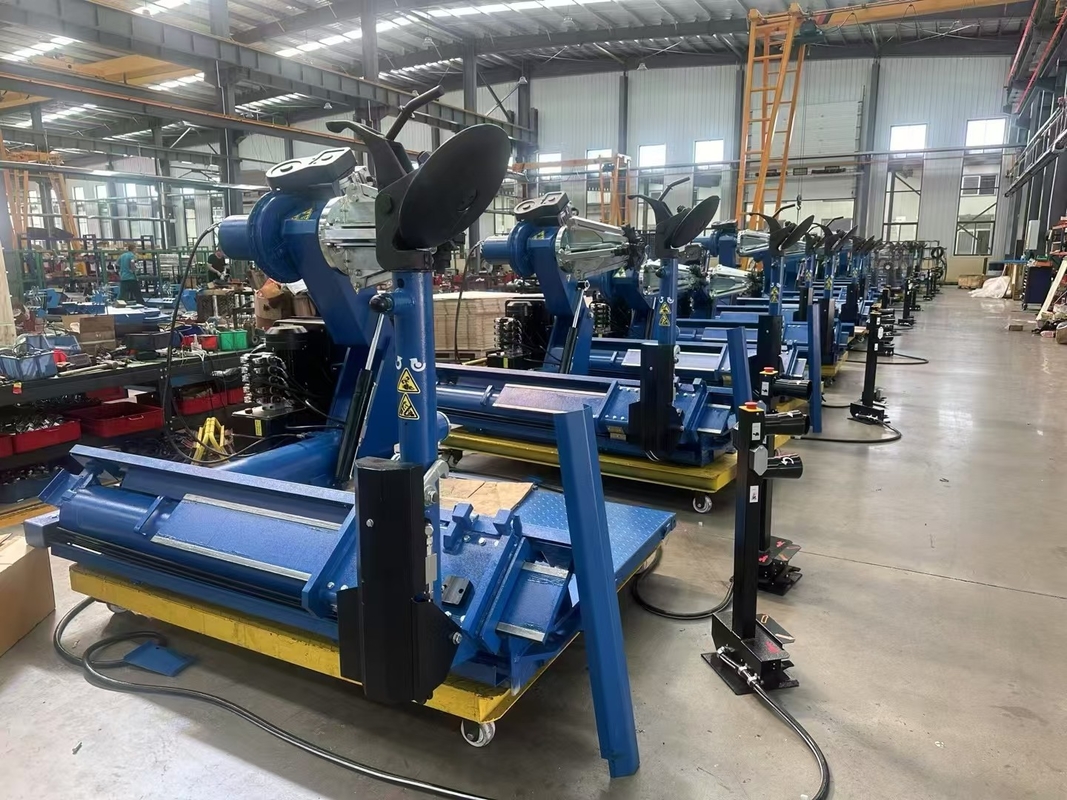

Product Images
Heavy Duty Large Vehicle Tire Changer 24V For Workshop 0 Heavy Duty Large Vehicle Tire Changer 24V For Workshop 1 Heavy Duty Large Vehicle Tire Changer 24V For Workshop 2
