Tire Changer
Created with Pixso.

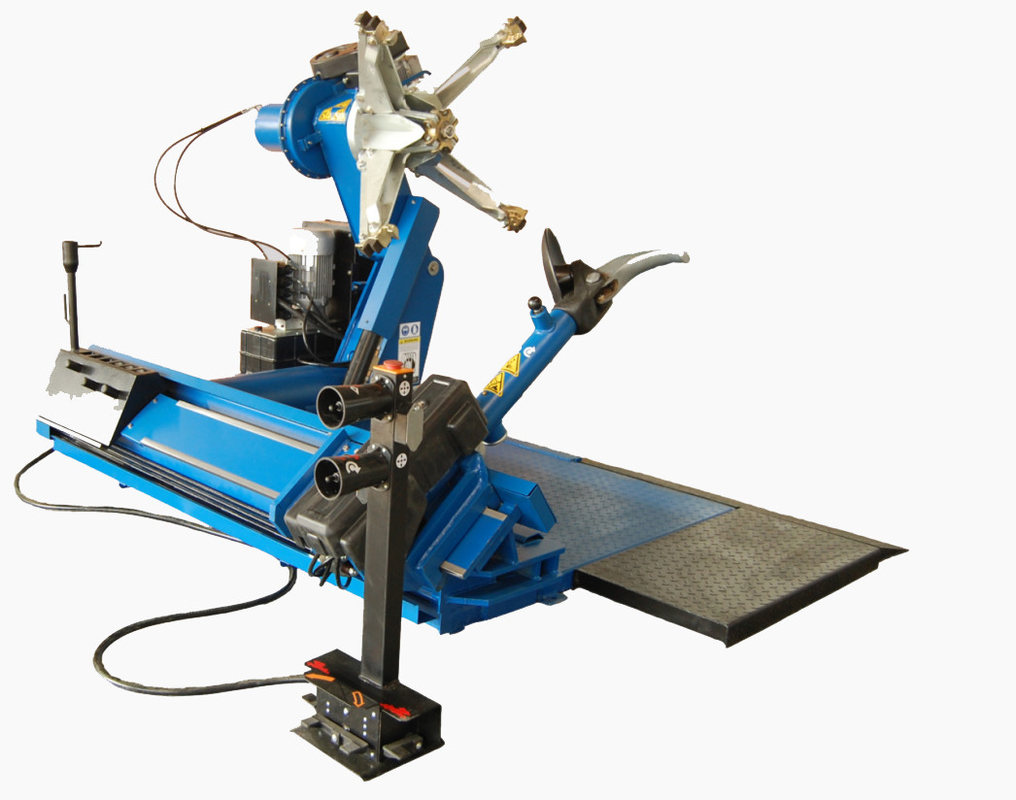

Industrial Truck Tire Changing Equipment Ergonomically With Movable Control Handle

Industrial Truck Tire Changing Equipment Ergonomically With Movable Control Handle

Brand Name: Iter
Model Number: XT-26
MOQ: 1set
Payment Terms: T/T,Western Union
Supply Ability: 1000 sets/month
Detail Information
Place of Origin:
China
Certification:
CE
Color:
Blue,red Or Grey
Rim Clamping Outside:
14"-56"
Max. Wheel Weight:
2000kg
Max. Wheel Width:
1200mm
Max. Tire Diamter:
2500mm
Operation Control Voltage:
24V
Packaging Details:
carton and plywood box
Supply Ability:
1000 sets/month
Highlight:

Industrial Truck Tire Changing Equipment

,

Movable Control Handle Tyre Changer

,

Ergonomically Tire Changing Equipment

Product Description
Industrial Truck Tire Changing Equipment with Movable Control Handle
Key Specifications
Color Options
Blue, Red or Grey
Rim Clamping Range
14" - 56"
Max Wheel Weight
2000kg
Max Wheel Width
1200mm
Max Tire Diameter
2500mm
Control Voltage
24V
Precision-Engineered Industrial Tire Changing System

Our professional-grade truck tire changing equipment combines ergonomic design with industrial-strength performance for reliable service in demanding environments.

Key Features
  • Ergonomic movable control handle operates at low pressure for precise adjustments during tire mounting/demounting, enhancing operator comfort and safety
  • 24V power system ensures safe, stable operation with minimized electrical hazards during extended use
  • Universal assembly arm with swinging disc and hook accommodates wheels from 14" to 26" for versatile performance
  • Hydraulic lift hips and clamps handle all rim sizes with smooth, consistent operation
  • Optional Italian-made pump upgrade available for enhanced hydraulic efficiency and superior performance
Technical Specifications
Model XT-42
Rim Diameter Range 14" - 42"
Max Wheel Weight 1600kg
Max Wheel Width 1050mm
Max Tire Diameter 2300mm
Hydraulic Pump Motor 1.5kw - 2.2kw 380V-3Ph (220V Optional)
Gearbox Motor 2.2kw 380v-3ph (220v optional)
Bead Breaker Force 3300kg
Operation Control Voltage 24V
Max Torque 5265N.M
Weight 758kg
Package Size 2500 × 2000mm
Voltage Options 220V/420V/380V
